Flat Panel Detector
Flexible and durable glass-free flat panel detector designed for enhanced performance and longevity

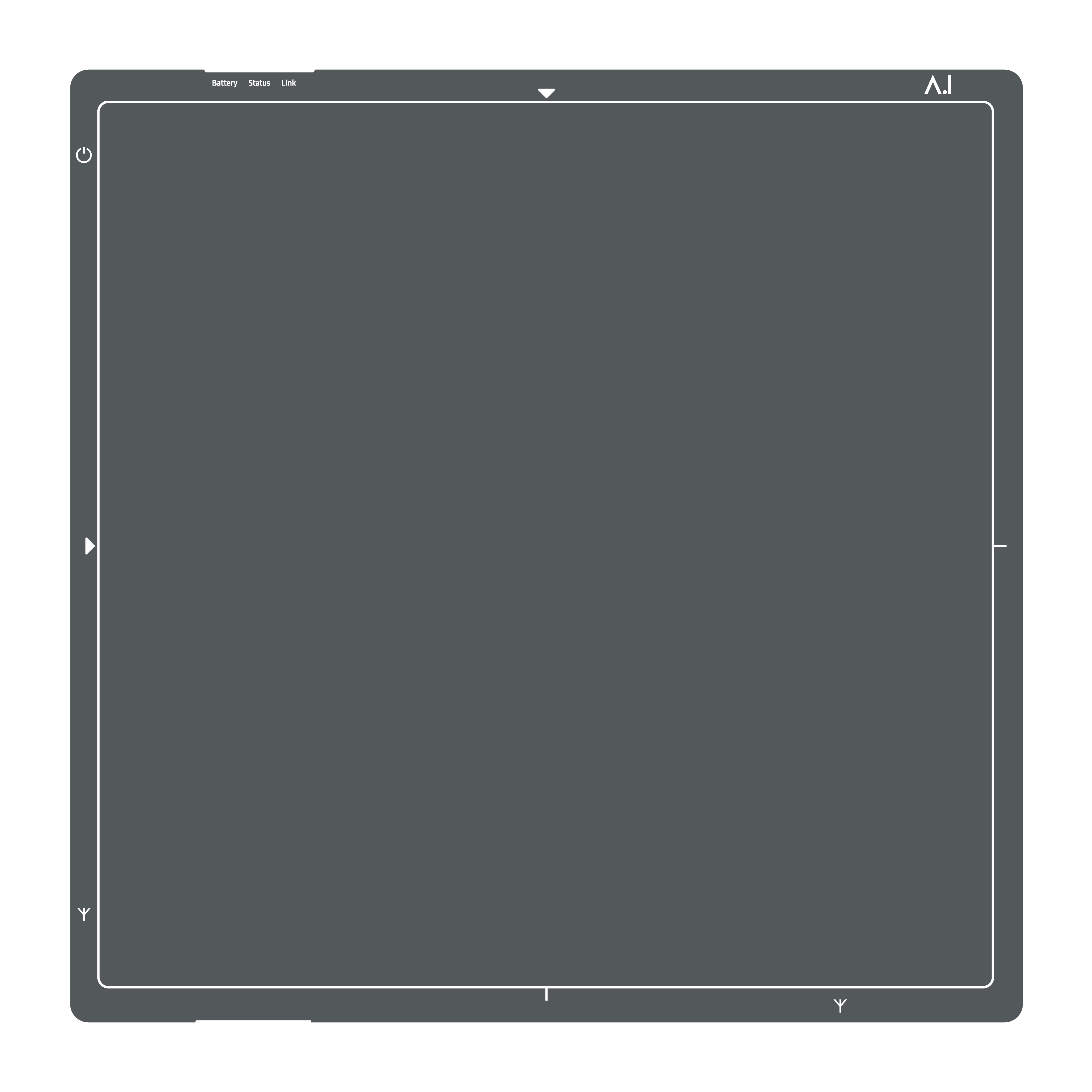

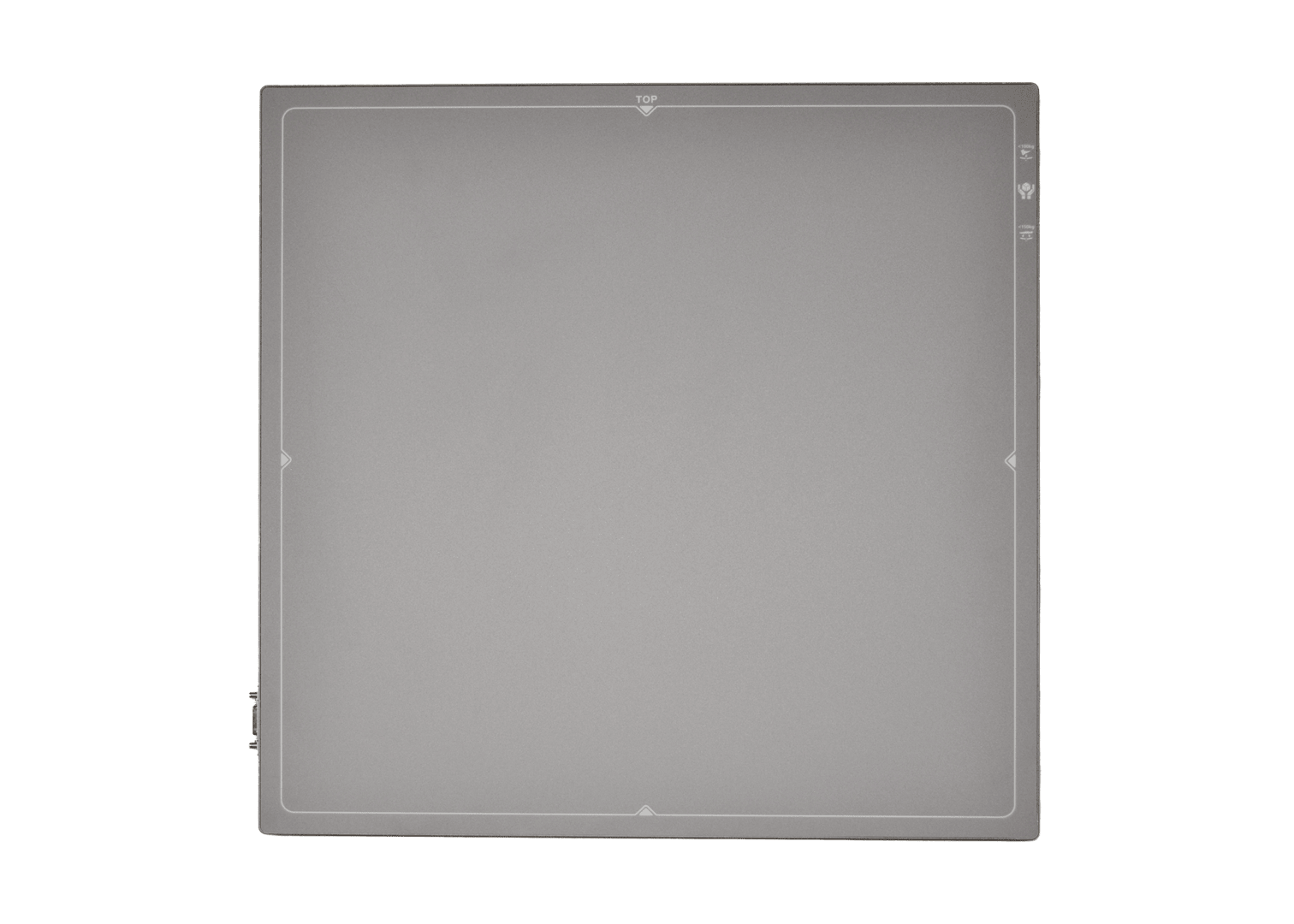

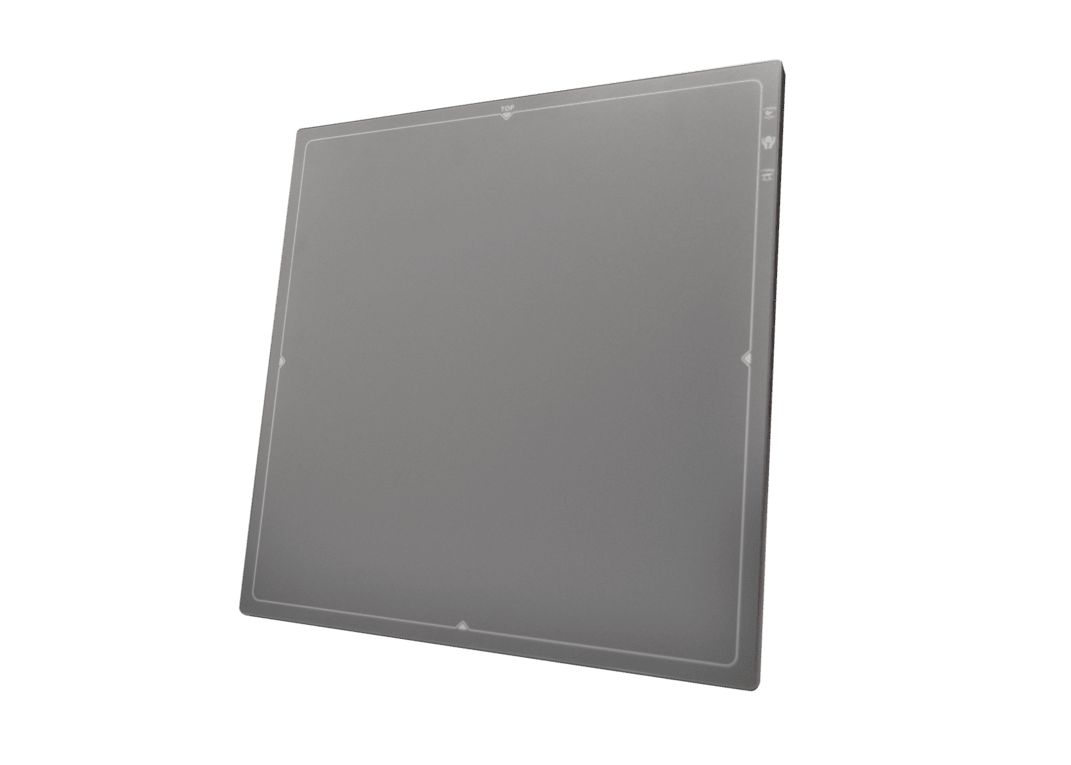

Introducing iODR 1717

Premium Flat Panel Detector for Digital Radiography

iODR1717 is built with flexibility in mind, offering a seamless imaging solution with both wireless and wired radiography system. Delivering superior image qualtiy with hihg DQE, iODR1717 can support upto 150KG weight with unmatched durability and resilience. With safety and convenience in mind, it also offers low radiation doses for safe screenings with its ergonomic design that is easy to handle.
Lightweight Design
  • iODR1717 is optimized for portability with its lightweight and ergonomic design
High Image Quality
  • iODR1717 produces high resolution image with 140 ㎛ pixel size
Flexible Connectivity
  • iODR1717 supports both wired and wireless connection for ease of use
Dive In

Key Features

Product Highlights

• Low Dose 47.5% reduction

• DQE 76% (0.01 lp/mm) | MTF 86% (0.5 lp/mm)

• AED, IP54, Wireless&Wired

• Image preview time ≤ 2 sec

• Real-time shock logging

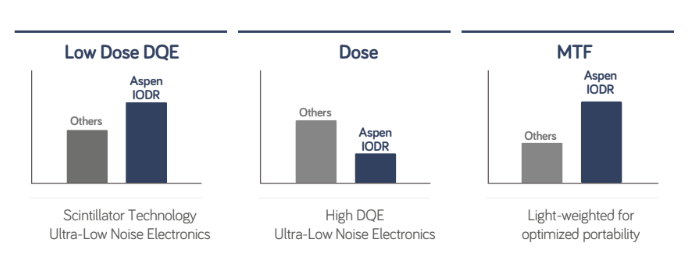

Dose Reduction

iODR1717 is built with safety in mind. With a lower dose of radiation (Low NED value) compared to CR, we make the routine screenings safer for patients.

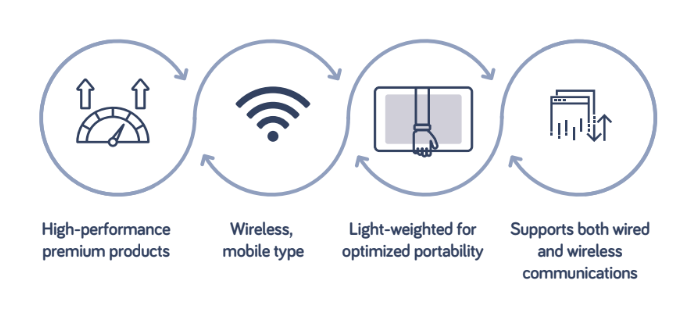

Efficiency
Efficiency is at the core of iODR1717. Experience the best of both worlds with our iODR1717 Wireless&Wired radiography system. Boasting high Detective Quantum Eciency (DQE) for excellent imaging quality, coupled with robust durability capable of handling up to 150 kg of distributed load, iODR1717 ensures resilience and reliability in any clinical setting.
Discover More

Technical Specification

Metric Value
Detector Type Amorphous Silicon Tft
Scintillator Cesium Iodide (Csi)
Active Detector Matrix 3,040 × 3,036 Pixels
Effective Area 425.6 Mm × 425.04 Mm
Pixel pitch 140μm
A/D Conversion 16 bit
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 86% (0.5 lp/mm, Typical)
Connectivity Tethered / Wireless (802.11 A/B/G/N & Ac)
AED Available

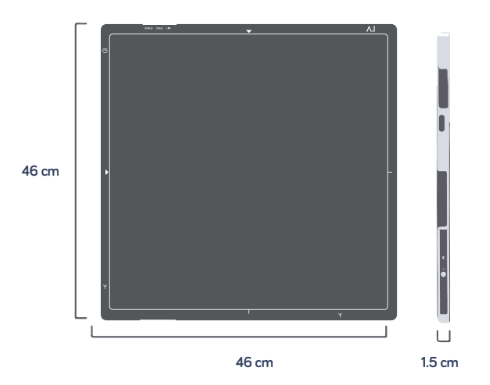

Dimensions (W x D x H) 460 X 460 X 15 mm
Weight 3.6 Kg (Without Battery)
Preview Time < 2 seconds
Cycle Time Wired: < 5 sec | Wirless: < 6 sec
Dust/Water-Resistance IP56
Battery Charging Time 3 h (battery charger)
Max Load Capacity 150 Kg For Uniform Load

Experience superior imaging, cost efficiency, and unmatched reliability
