Flat Panel Detector
Versatile flat panel detector with wireless and wired connectivity for seamless and flexible imaging solutions

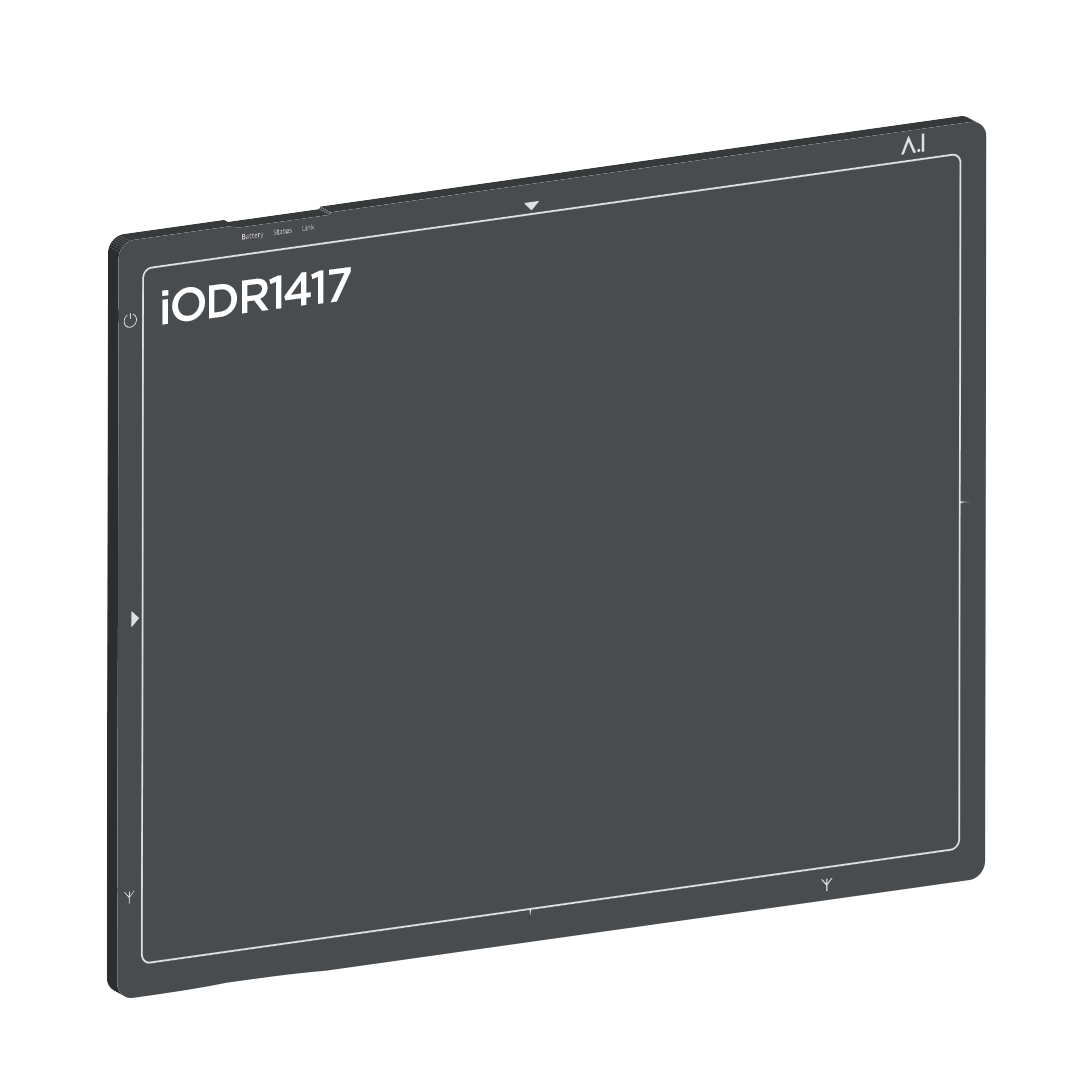

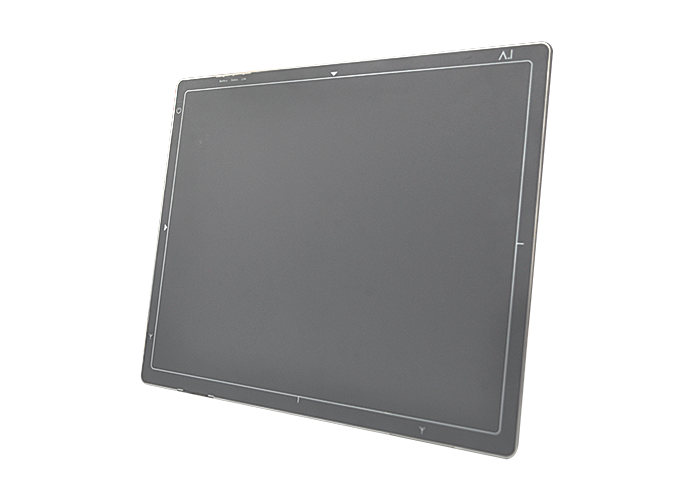

Introducing iODR 1417

Versatile Flat Panel Detector with flexible imaging solutions

iODR1417 is built with flexibility in mind, featuring upgrades in electronics focus scintillator, advanced image reconstruction and the included software, which allows for an advanced level of imaging with high quality and low-dose operation
Cost Efficient
  • Cost-saving solution with quality results and high ROI
High Image Quality
  • iODR1417 produces high resolution image with 140 ㎛ pixel size
Reliable
  • iODR1417 is a highly liable and stable general radiography detector
Dive In

Key Features

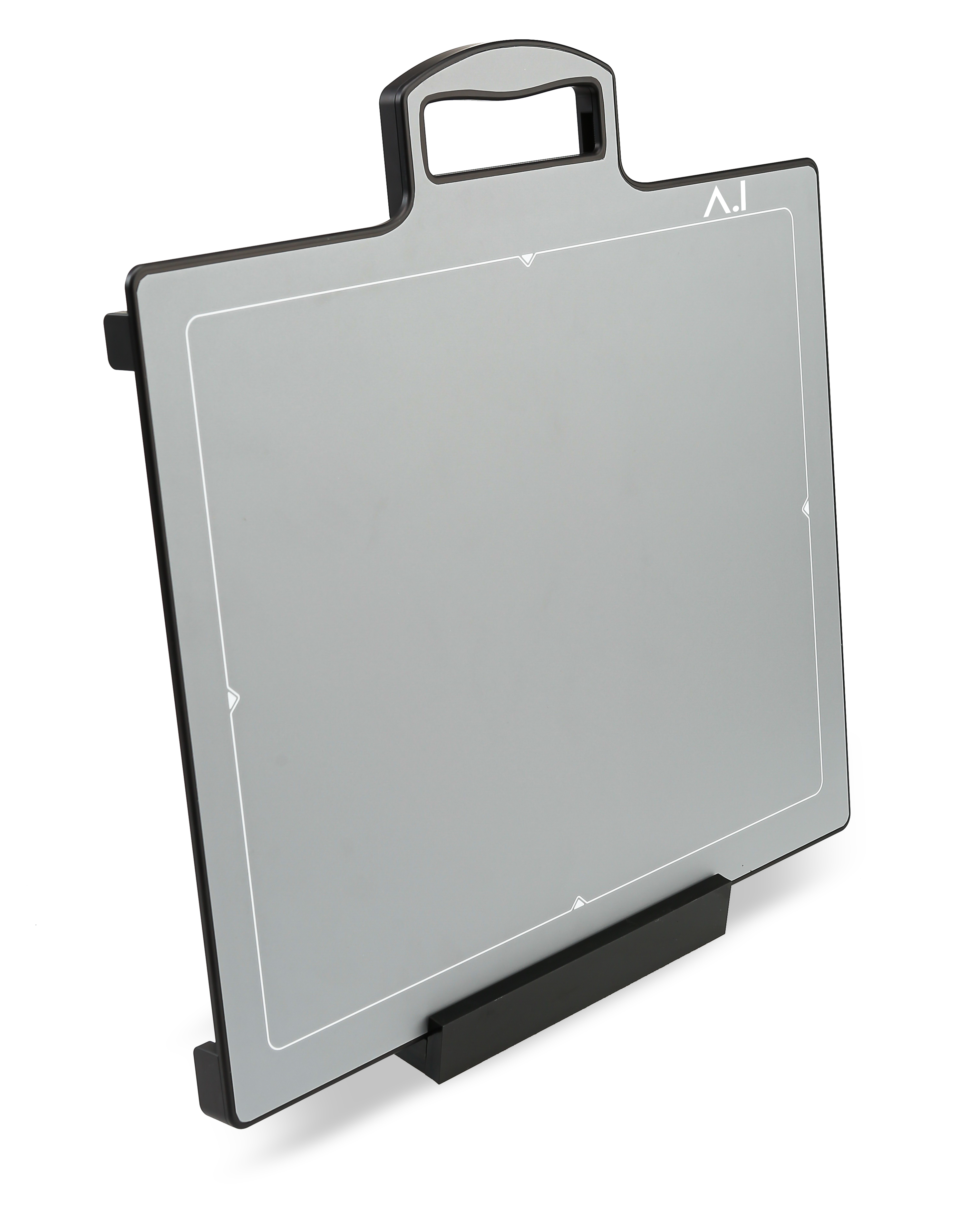

Drop Protection for iODR1417

• Ergonomic Handle Design

• Curved Corners

• Cutout for Tether

• Safety Sheet Attachment for Skin Contact

Discover More

Technical Specification

Metric Value
Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,040 × 2,466 pixels
Effective Area 425.6 mm × 345.24 mm
Pixel pitch 140μm
A/D Conversion 16 bit
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 86% (0.5 lp/mm, Typical)
Connectivity Tethered / Wireless (802.11 A/B/G/N & Ac)
AED Available
Dimensions (W x D x H) 460 x 384 x 15 mm
Weight 3.1 kg without battery
Max Load Capacity 150KG for uniform load
Dust/Water-Resistance IP56
Battery Charging Time 3 h (battery charger)

Experience superior imaging, cost efficiency, and unmatched reliability

Download Brochure (PDF)
