Aspen Imaging - iODR1417-GF

Flat Panel Detector

for Digital Radiography

Flexible and durable Glass-Free flat panel detector designed for enhanced performance and longevity

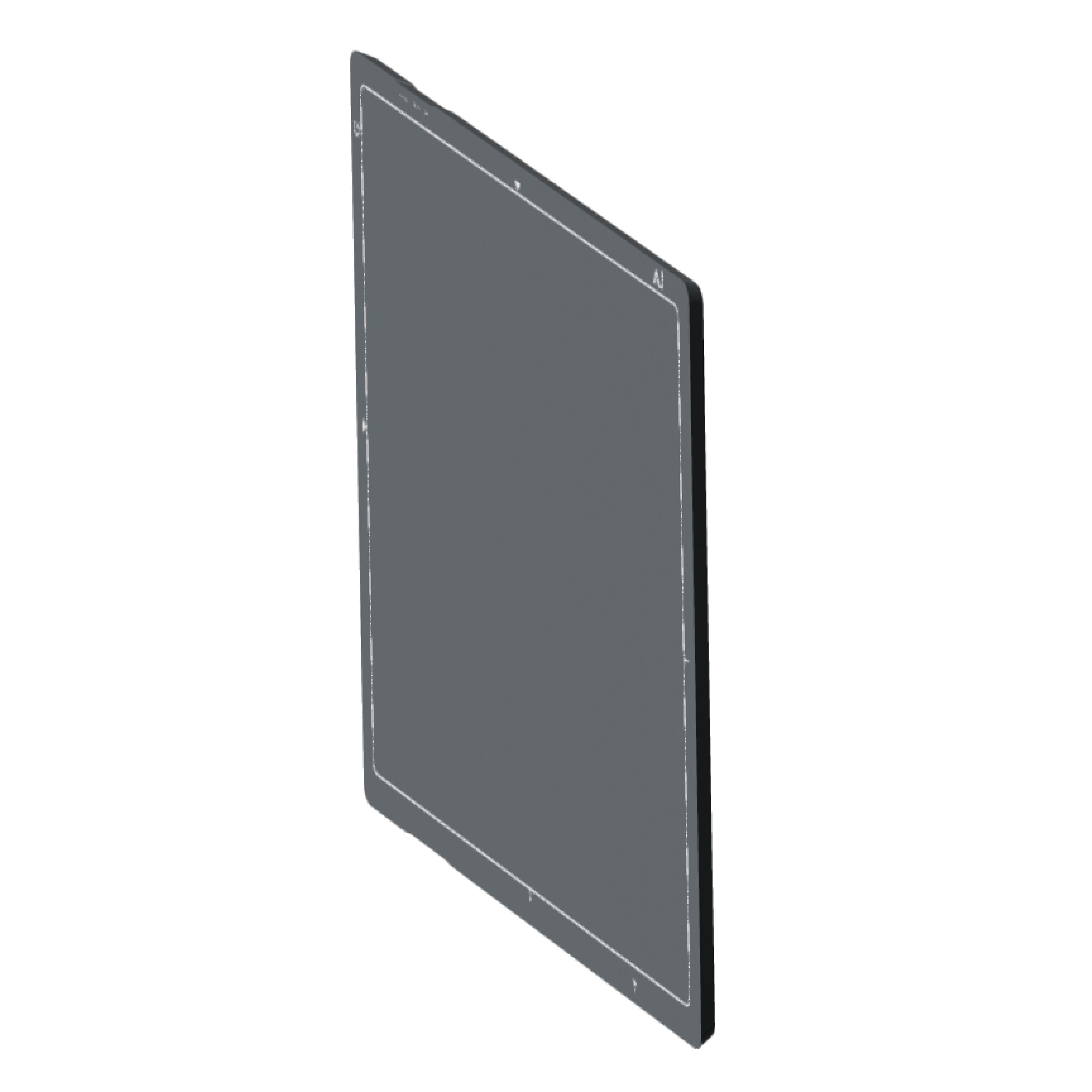

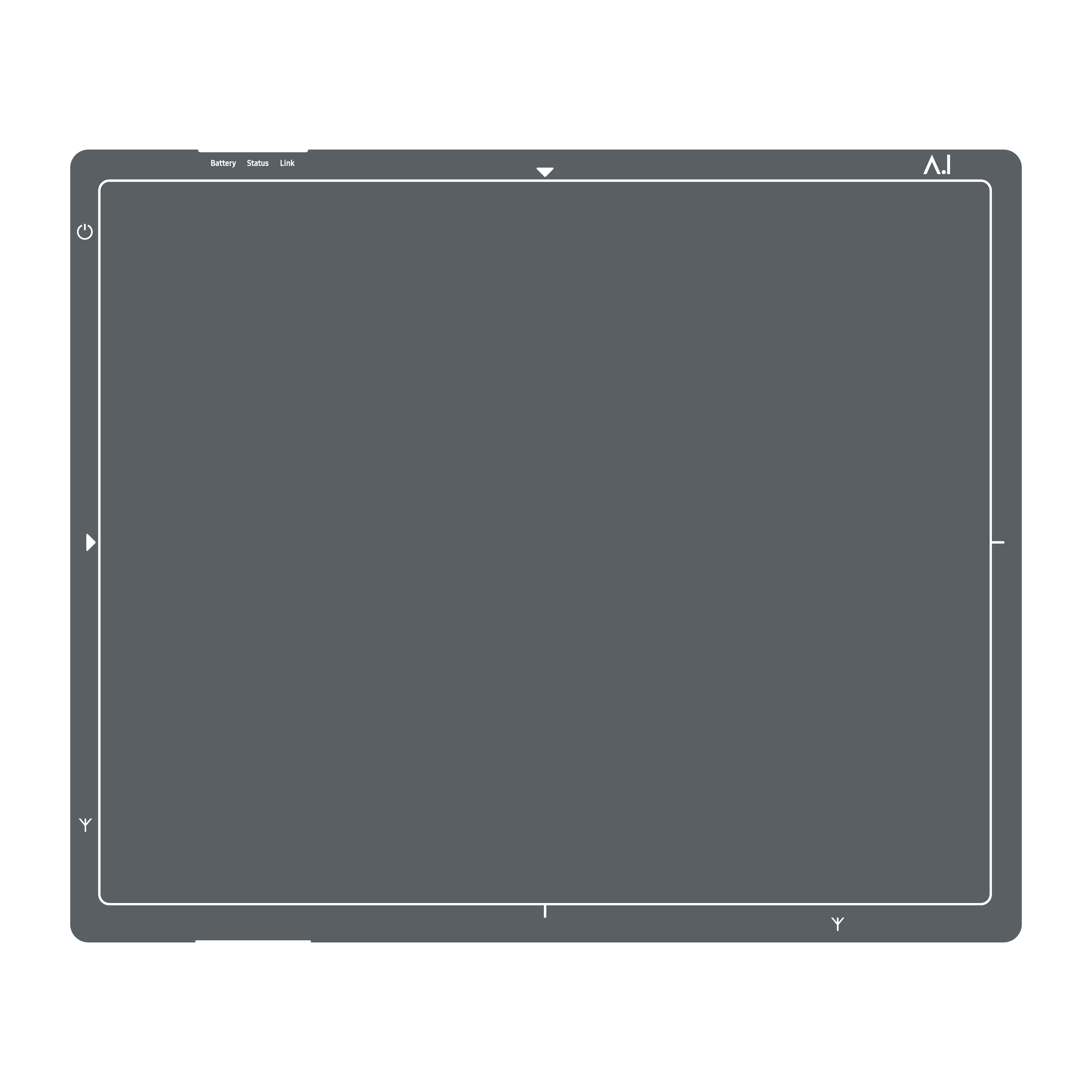

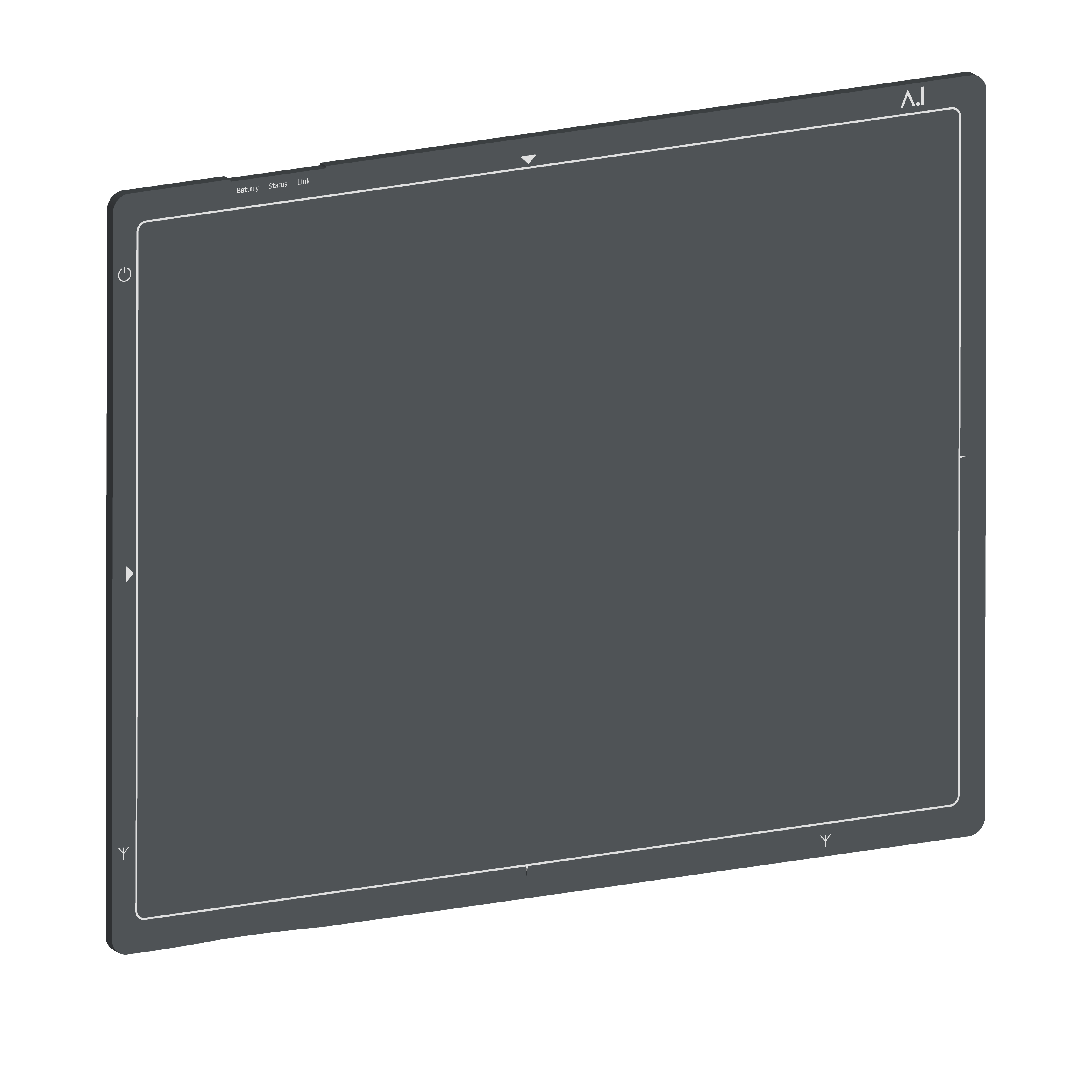

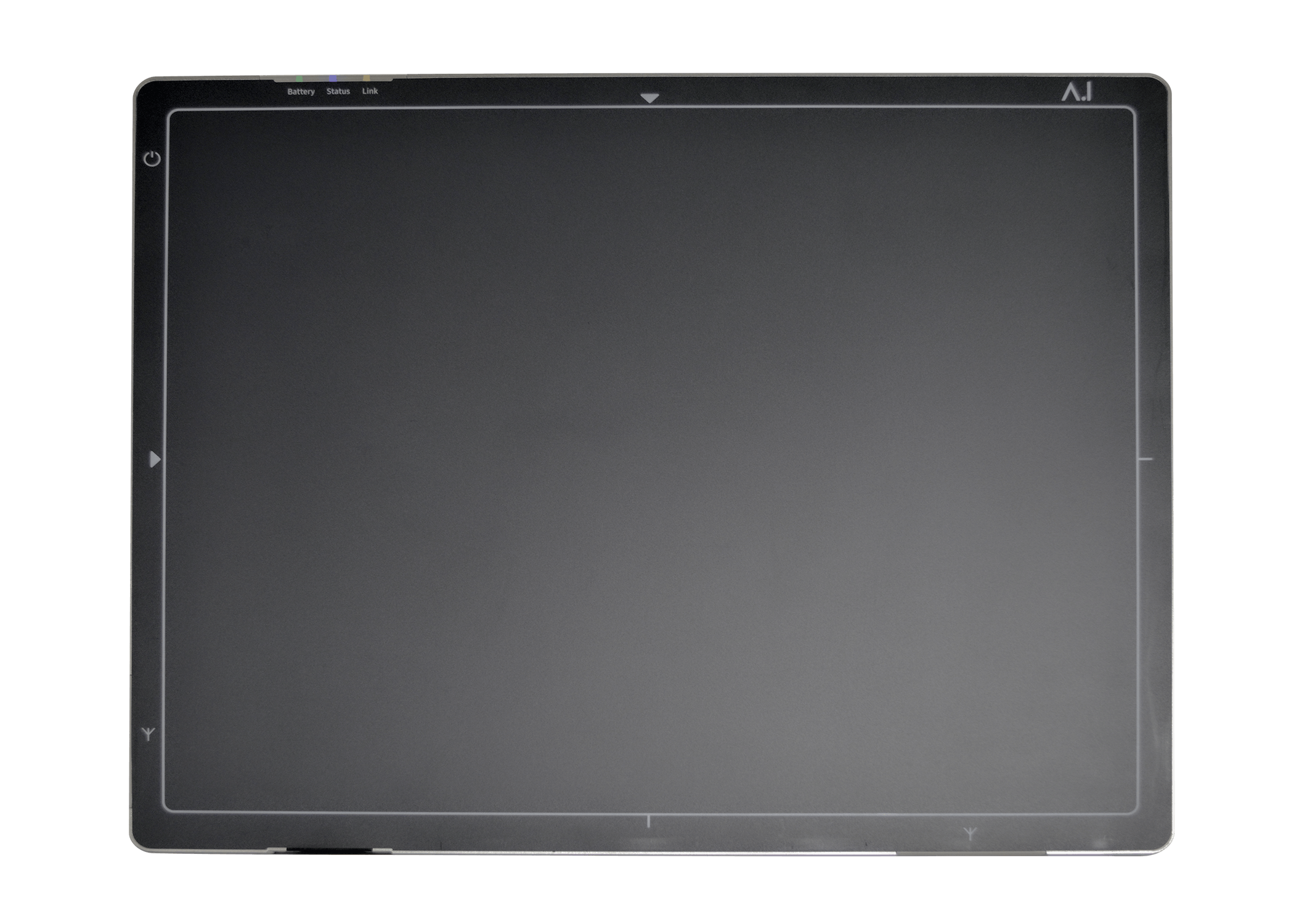

Introducing iODR 1417 - GF

Flexible Csl & Glass-Free Detector

iODR1417-GF is an innovative, glass-free X-ray detector that combines exceptional image quality, strong durability, and a flexible design to meet the demands of modern healthcare. With industry-leading performance metrics, such as an 86% Modulation Transfer Function (MTF) and 76% Detective Quantum Efficiency (DQE), the iODR1417-GF delivers superior diagnostic clarity.

Lightweight yet resilient, this premium detector sets a new standard for reliability and usability, making it an outstanding choice for healthcare providers seeking advanced imaging solutions at a reasonable price.

Cost Efficient

Cost-saving solution with quality results and high ROI

High Image Quality

iODR1417-GF produces high resolution image with 140 ㎛ pixel size

Strong Durability

Incorporates Cesium Iodide (CsI) Direct Deposition technology for improved robustness

Dive In

Key Features

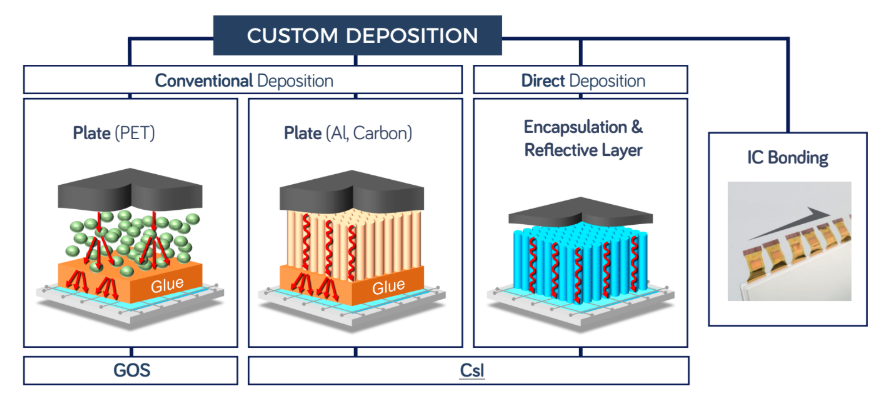

Glass-Free Design

iODR1417-GF utilizes a flexible, unbreakable structure by removing carrier glass, reducing the risk of internal damage and enhancing durability. At its core, iODR1417-GF incorporates Cesium Iodide (CsI) Direct Deposition technology for improved robustness and performance.

High Image Quality

Boasts an impressive 86% Modulation Transfer Function (MTF) and 76% Detective Quantum Efficiency (DQE), setting an industry benchmark.

Provides exceptional diagnostic clarity with low radiation dose and advanced features, ensuring detailed anatomical visualization.

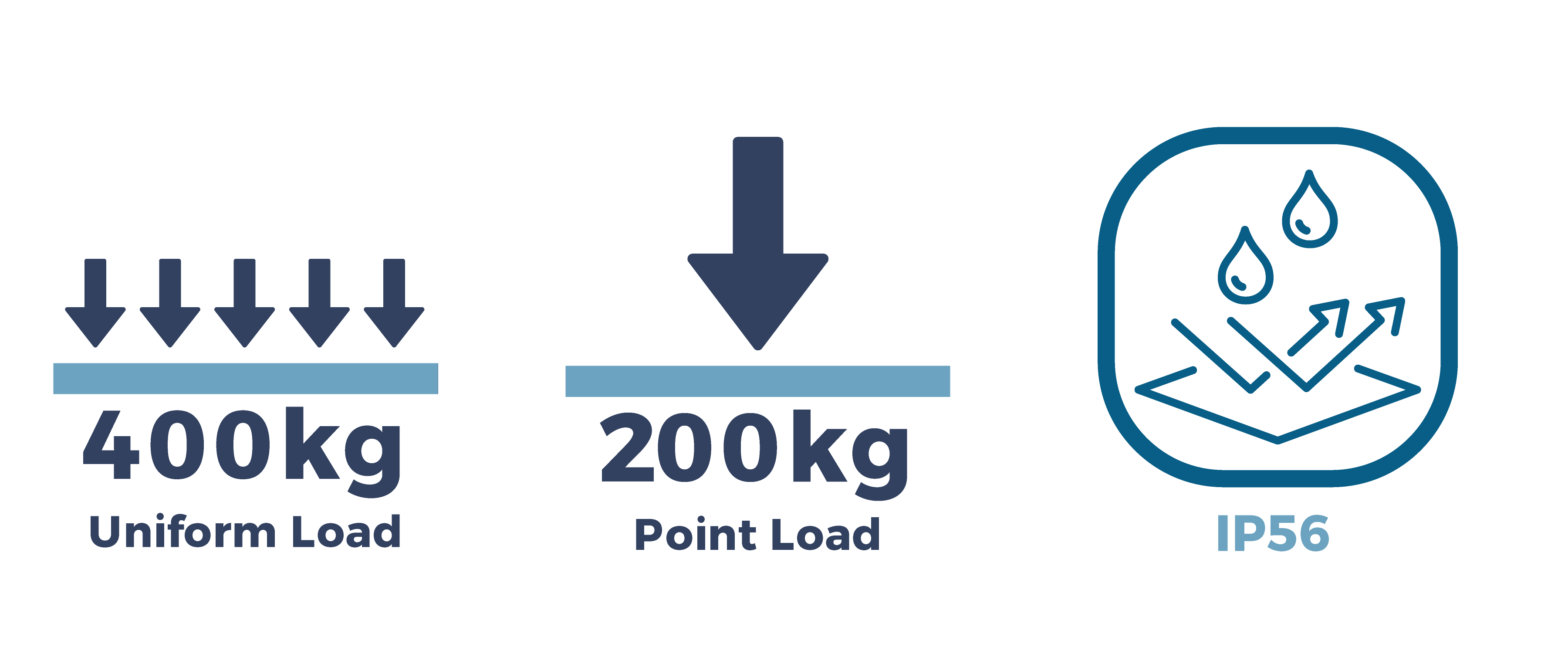

Durability & Environmental Resilience

Features robust mechanical parts and undergoes strict internal reliability testing for stable operation and low maintenance costs. Rated IP56 for water resistance and dust-proofing, making it suitable for harsh environments.

Discover More

Technical Specification

Metric	Value
Detector Type	a-Si Flexible TFT
Scintillator	CsI (500μm)
Effective Area	425.6 mm x 345.24 mm
Pixel pitch	140μm
Grayscale	16 bit
Spatial Resolution	3.57 lp/mm
DQE	76% (0 lp/mm, Typical)
MTF	86% (0.5 lp/mm, Typical)

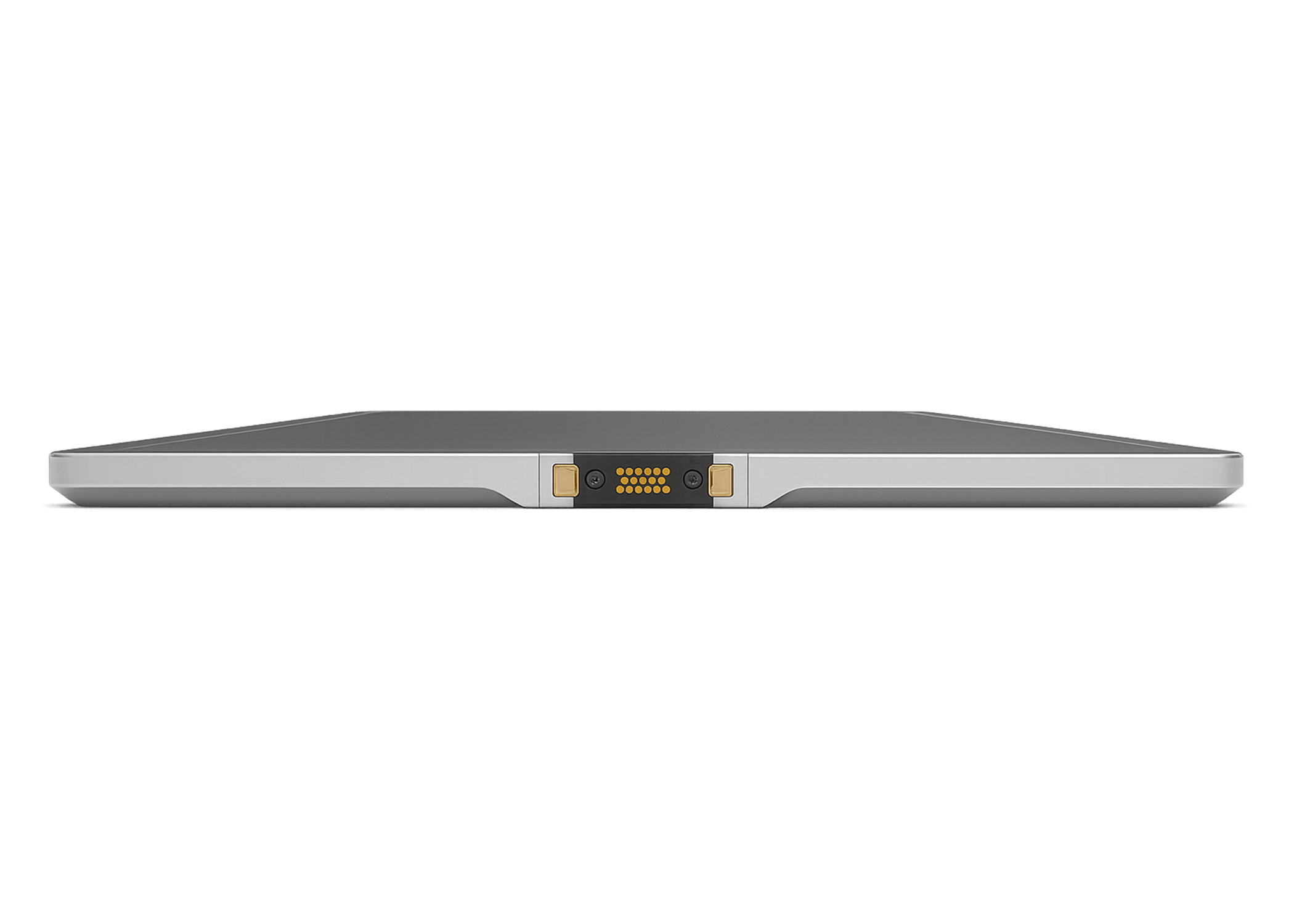

Connectivity	Tethered / Wireless (IEEE 802.11 a/b/g/n/ac, 2.4 GHz/ 5 GHz)
Cycle Time	10 – 13 seconds
AED	Available

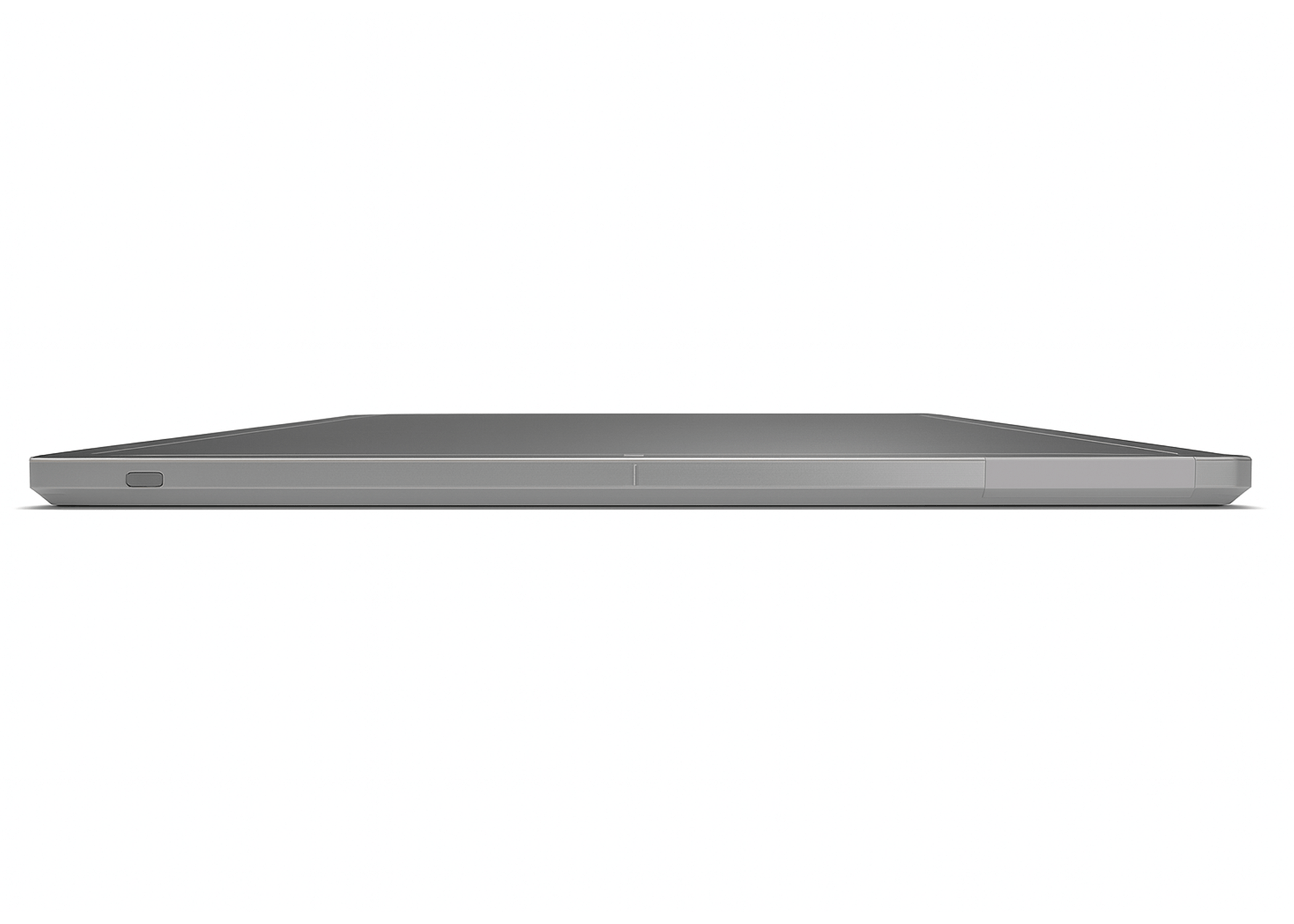

Dimensions (W x D x H)	460 x 384 x 15 mm
Weight	2.8 kg
Preview Time	Wired: < 2 sec \| Wirless: < 2.5 sec
Cycle Time	Wired: < 5 sec \| Wirless: < 6 sec
Dust/Water-Resistance	IP56

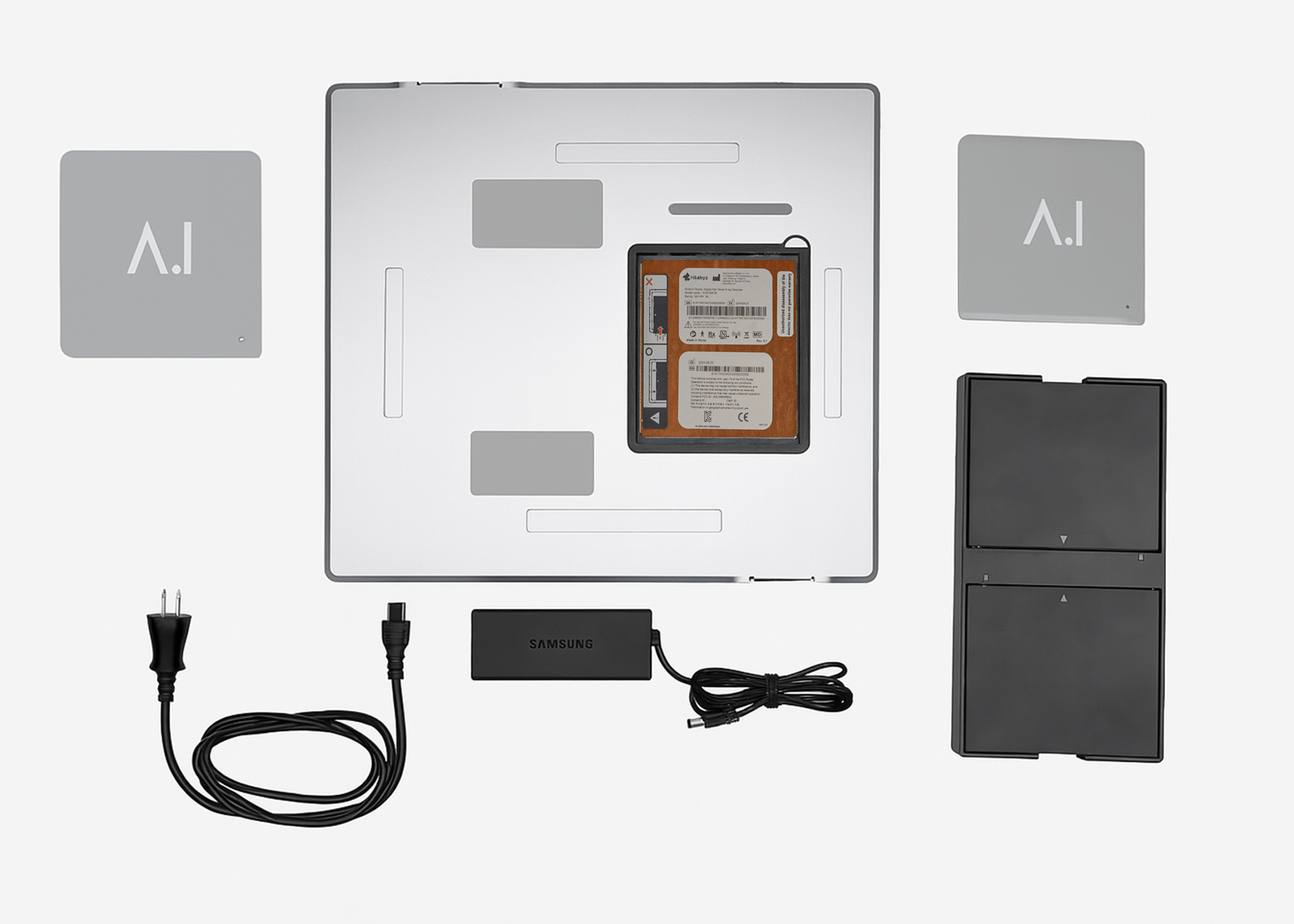

Battery Charging Time	6 h (Wired) / 3 h (battery charger)
Battery Charging Use	500 images for 4 hours
