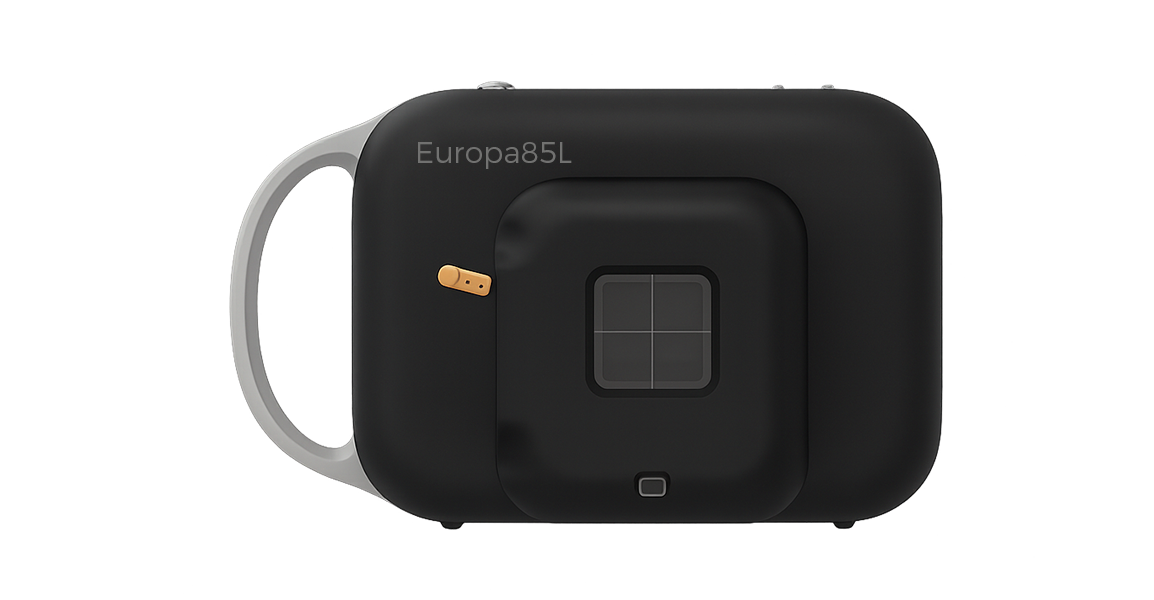

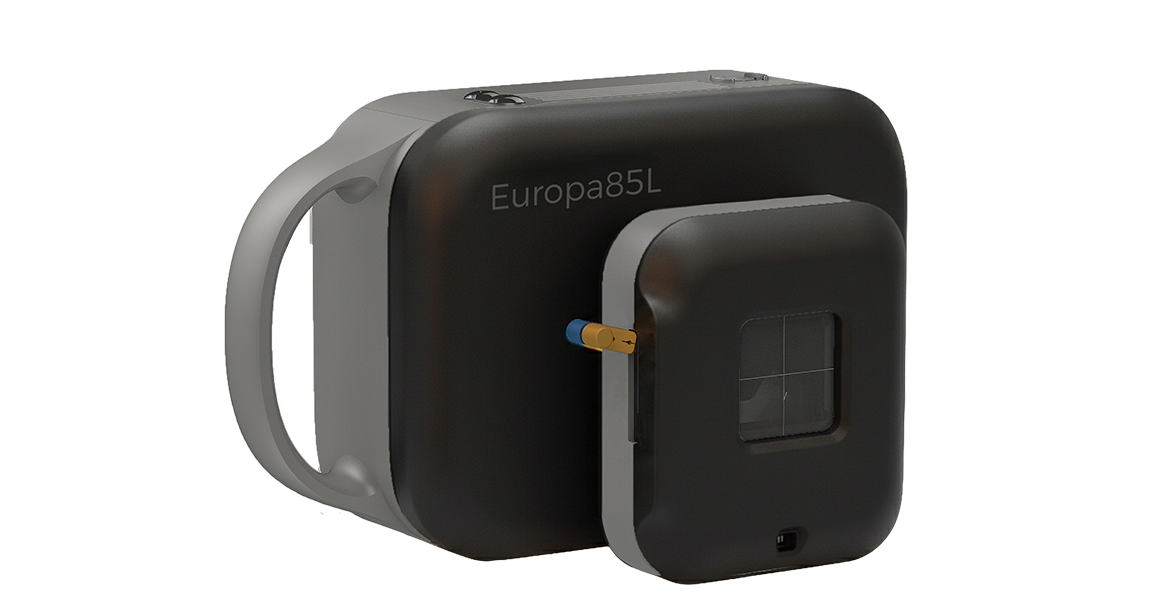

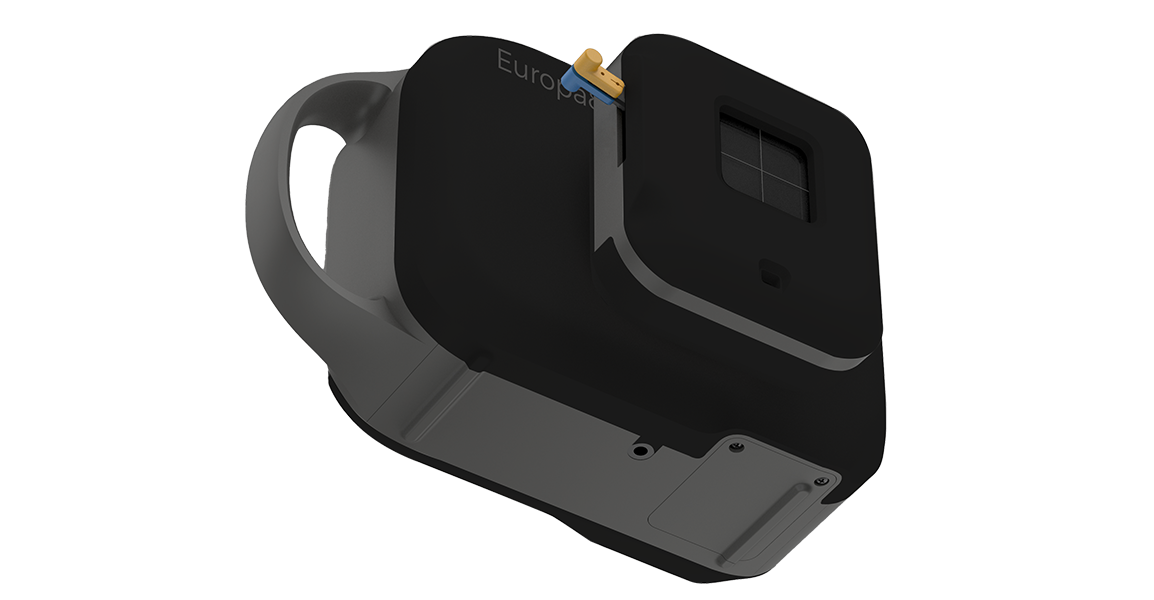

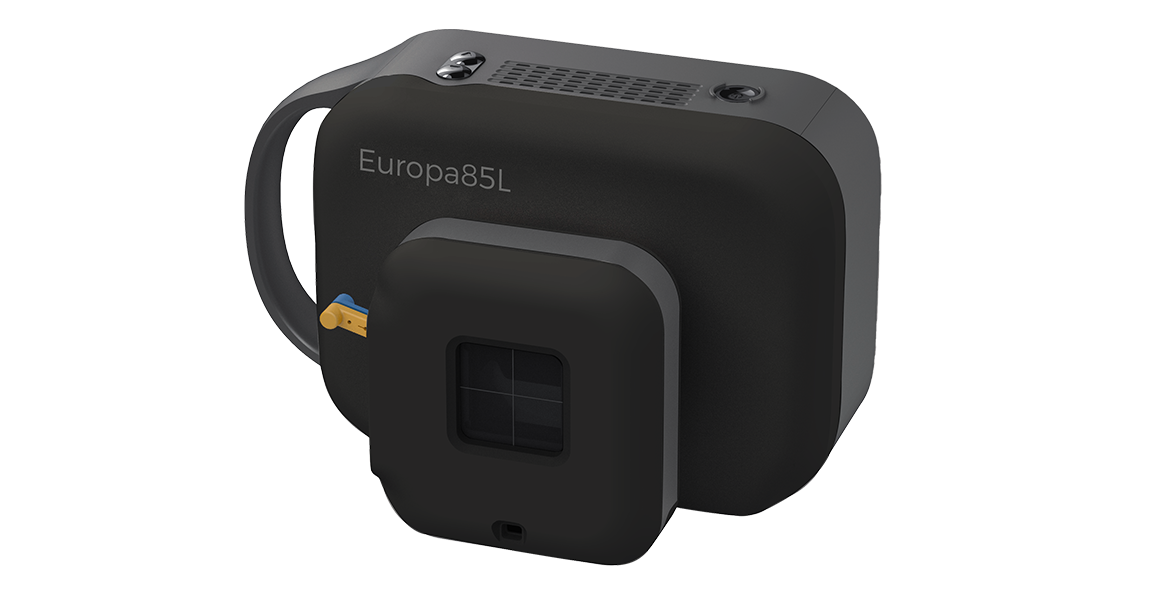

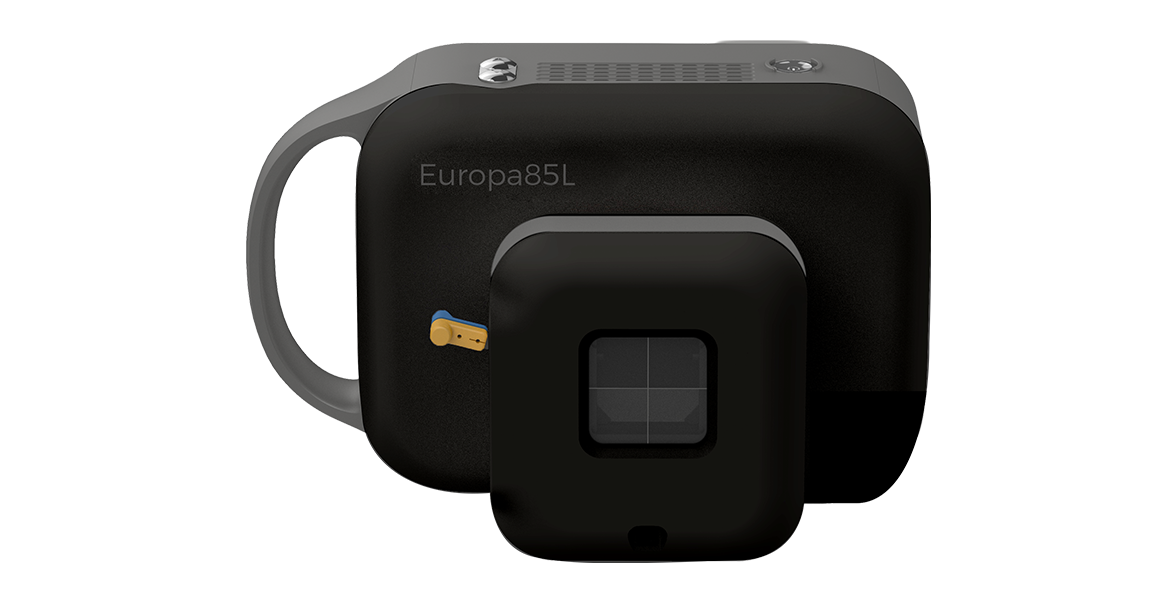

Lightweight 8 Lb Design
- Easy to carry, position and transport
- ideal for mobile use and space-limited environments
Weighing only 8 lb, Europa85L makes it easy to manuever between patient rooms, mobile setups or temporary locations.
Its compact form factor allow for simple positioning during routine radiographic procedures

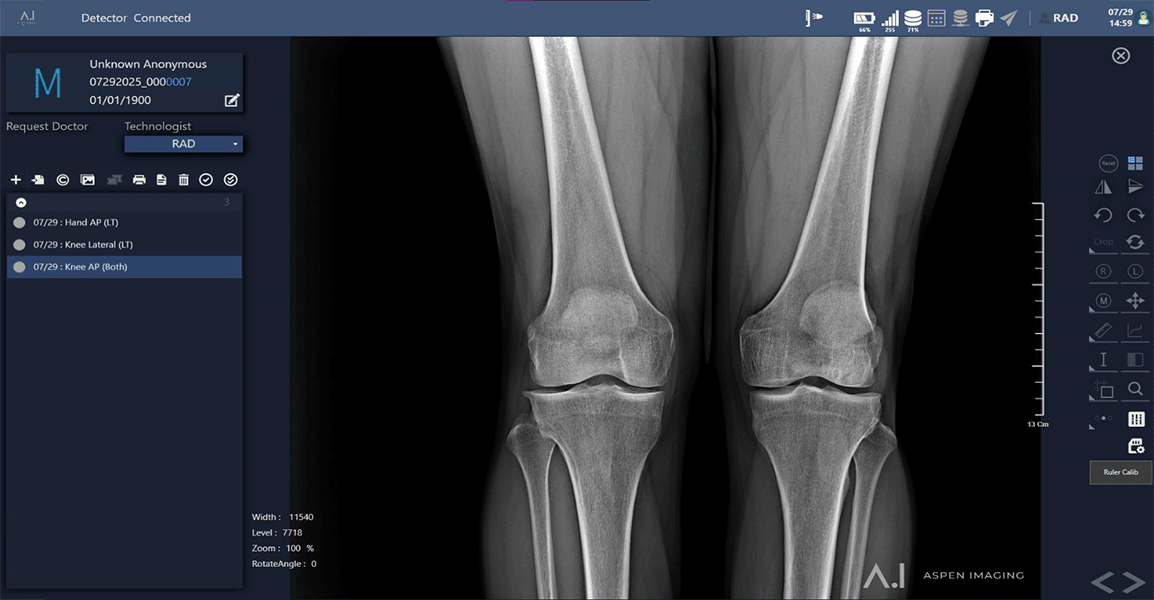

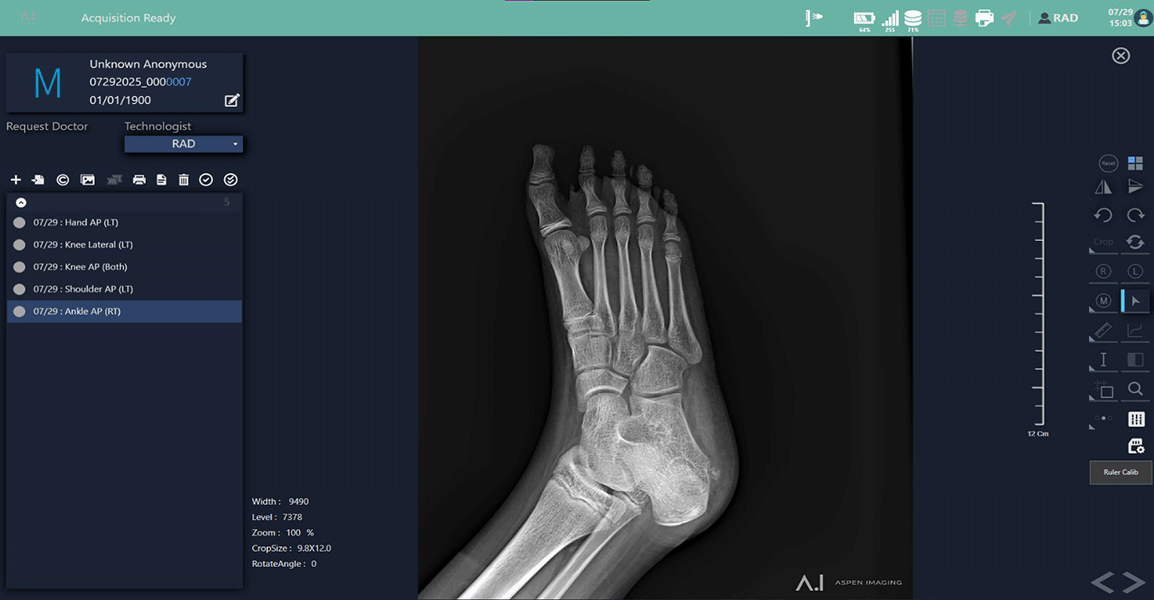

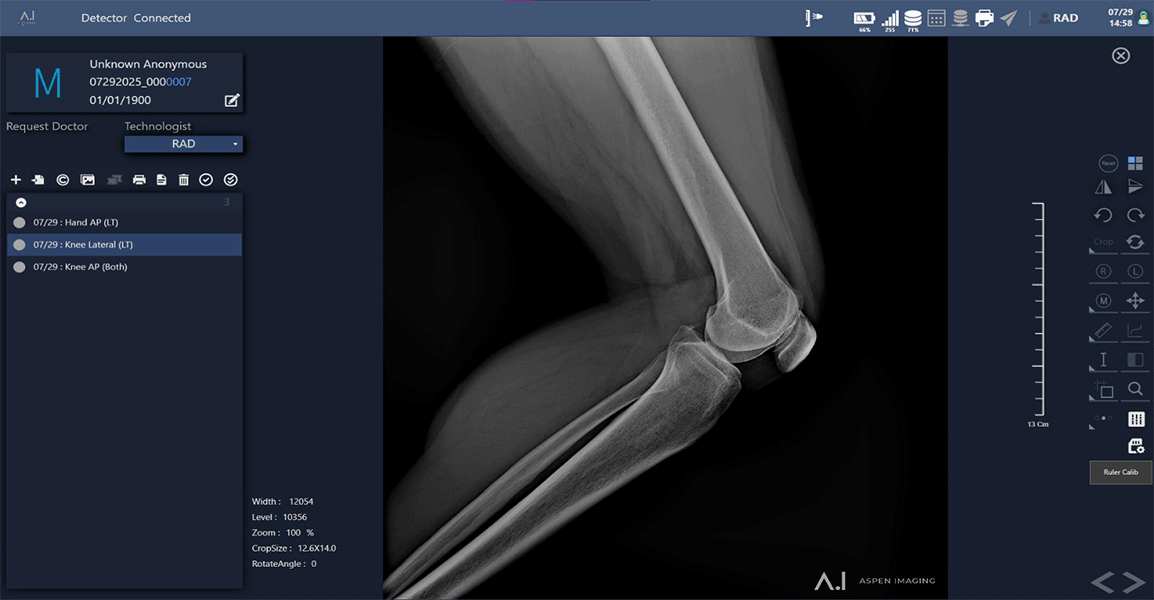

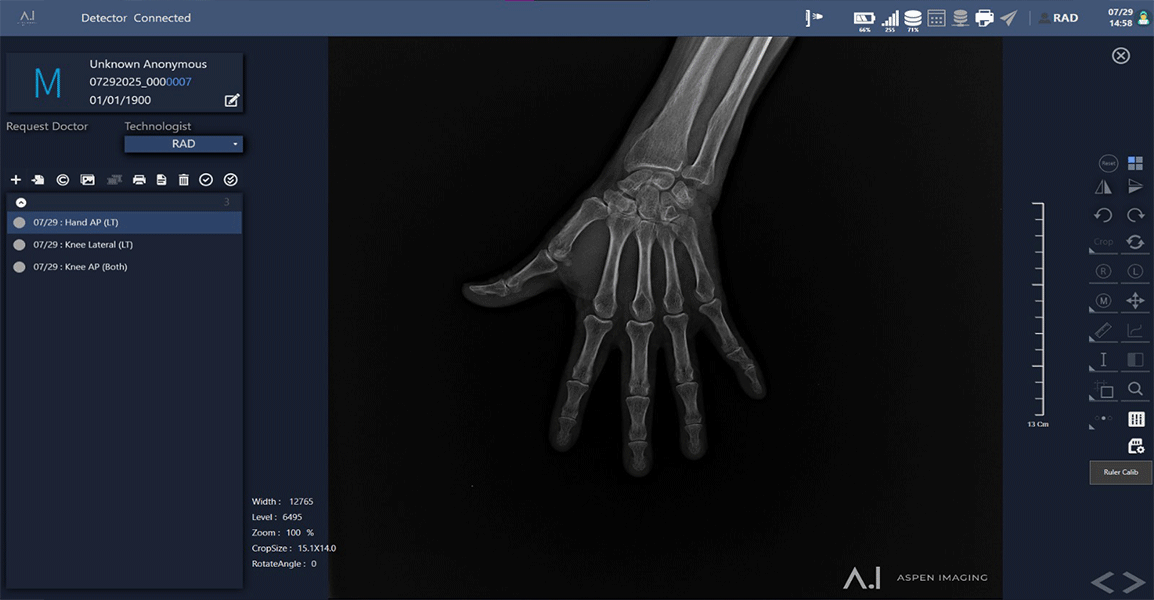

Europa85L operates with an external workstation. Image capture, processing, and DICOM transfers are all handled entirely by the workstation's DR software, which supports flexible configuration options
Europa85L provides consistent generator performance for general radiographic imaging with:
Adjustable 50-85kV
2-5mA range
0.8mm focal spot
0.03-2.0 second exposure time
Its compact design allows Europa85L to be a perfect fit for:
Small imaging rooms
Mobile carts
Temporary care areas

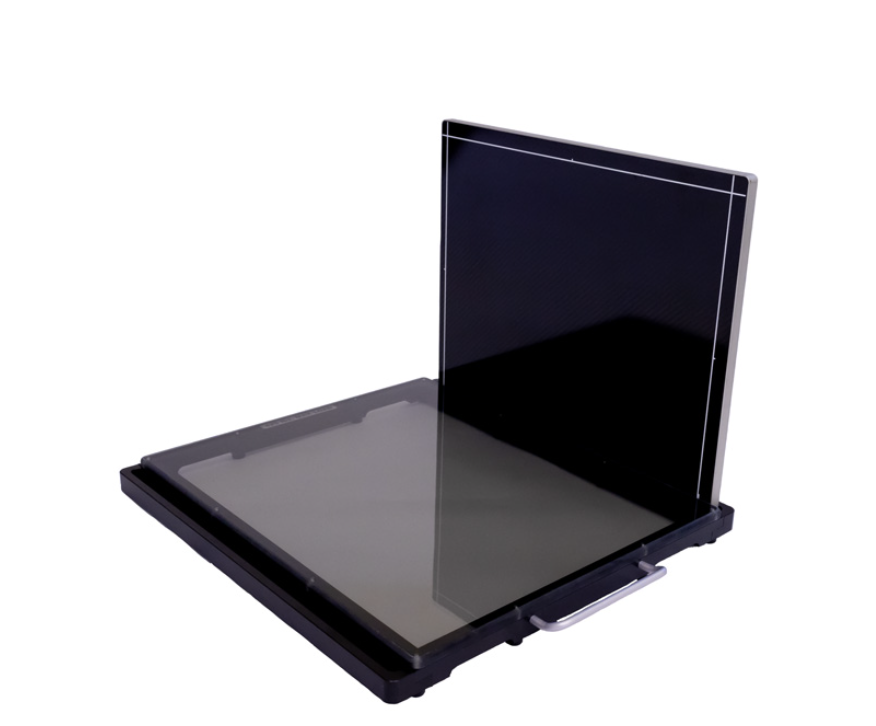

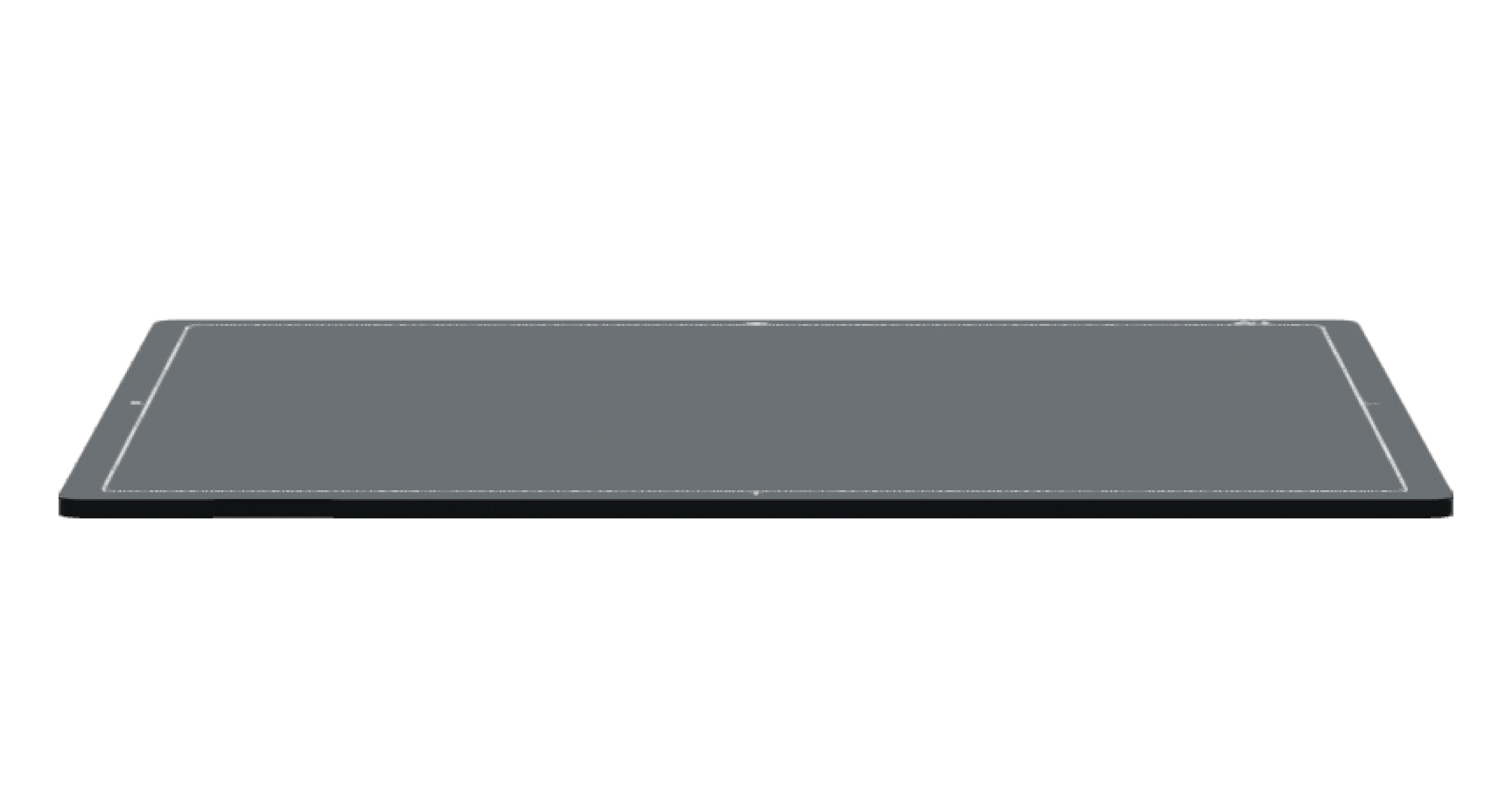

Europa85L pairs seamlessly with Aspen's iODR Dr detectors, supporting both wireless and tethered iODR panel connections
| Item | Specification |
|---|---|
| Dimensions | 266 mm (W) x 167 mm (H) x 156 mm (D) |
| Weight | About 3.6 kg or 8 lb |
| Power output | 425W |
| kV / mA | 50 ~ 85 kV / 2~5 mA |
| Exposure Time | 0.03 ~ 2 seconds |

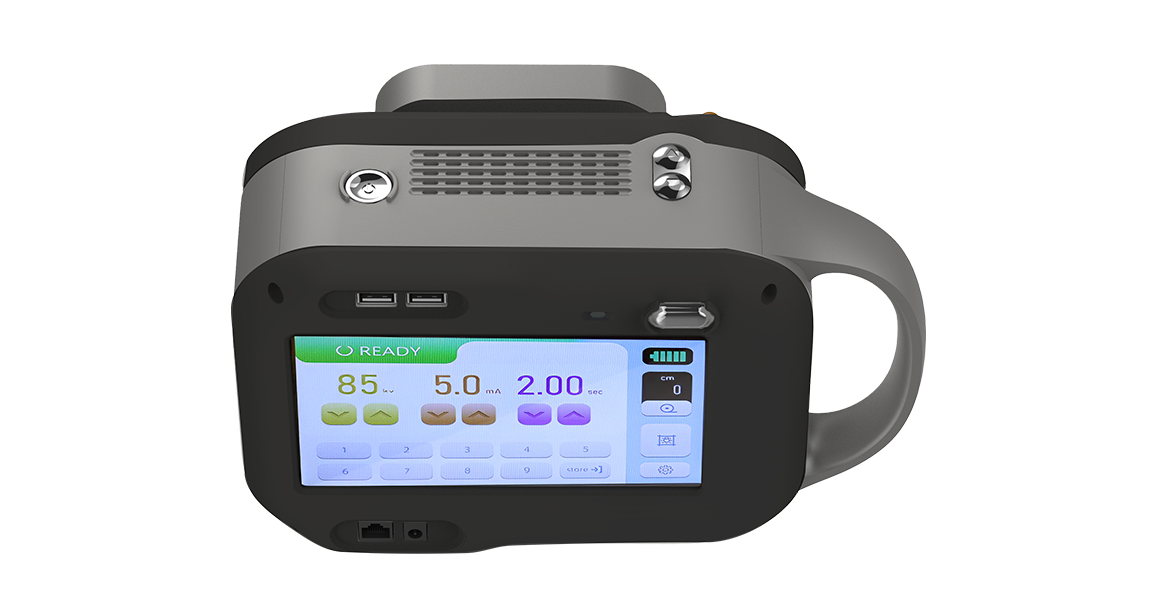

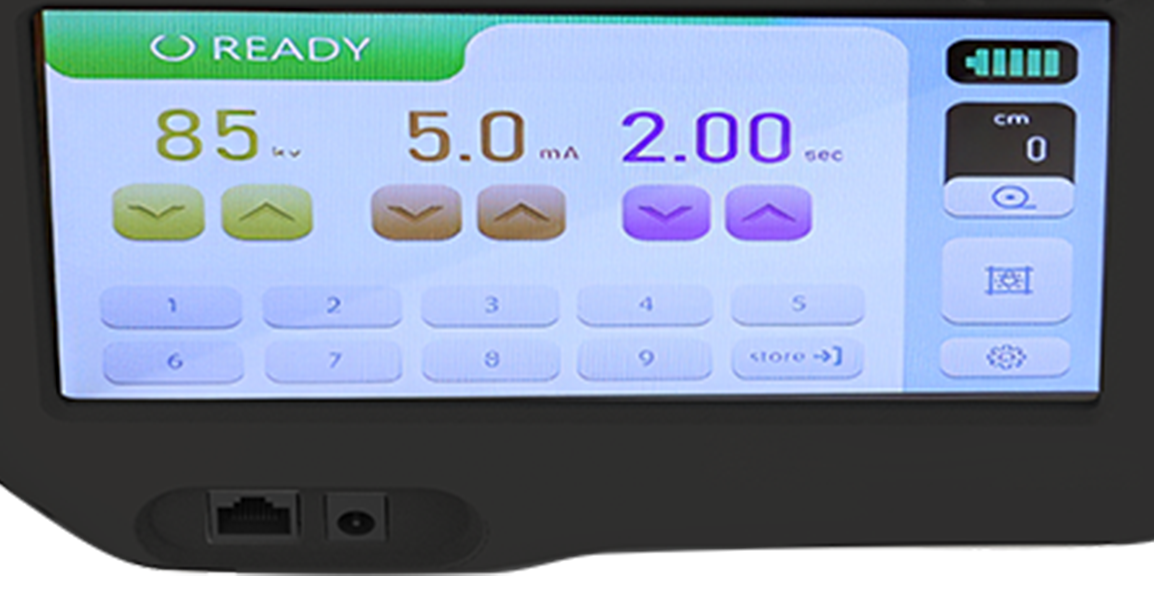

| Operation | Via built-in LCD touch screen |
| Battery Capacity | 22.2 VDC / 2200 mAh |
| Heat Capacity | 8000J |
| Focal Spot | 0.8 mm |
| Anode Angle | 16 degrees |
