THe Most Portable & Powerful
X-RAY Device

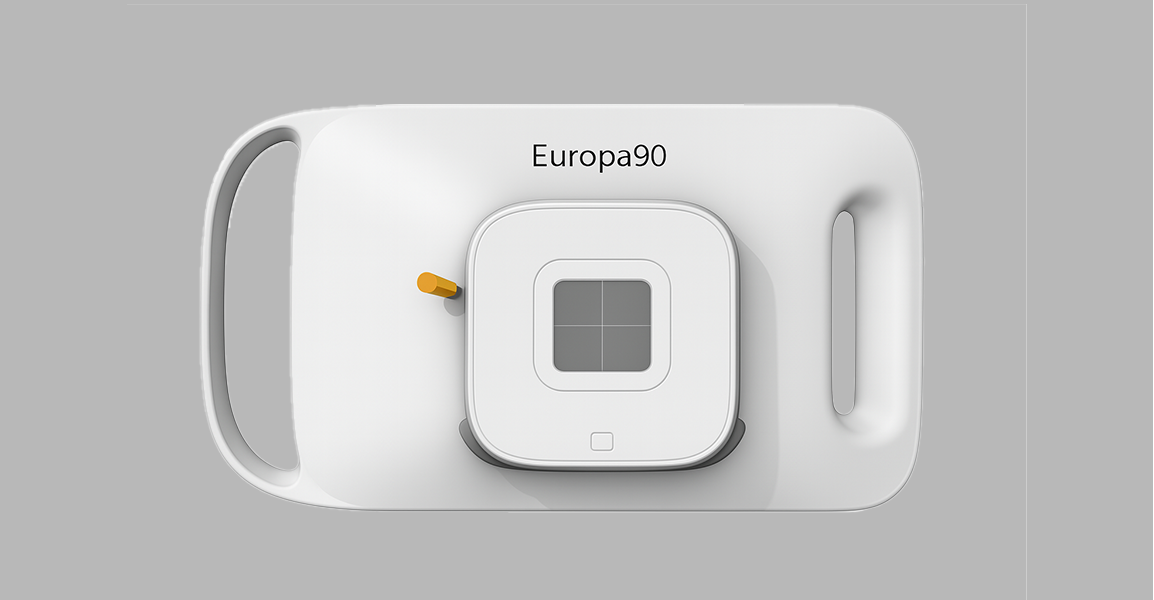

Europa90

Introducing Europa

The power of X-Ray room
in the size of a camera

We’ve designed a system that allows an operator to take x-ray images without the dedicated physical space or electrical power required for a conventional x-ray machine. More impressively, Europa can acquire images & wirelessly transmit to PACS via the on-board workstation
Completely Wireless

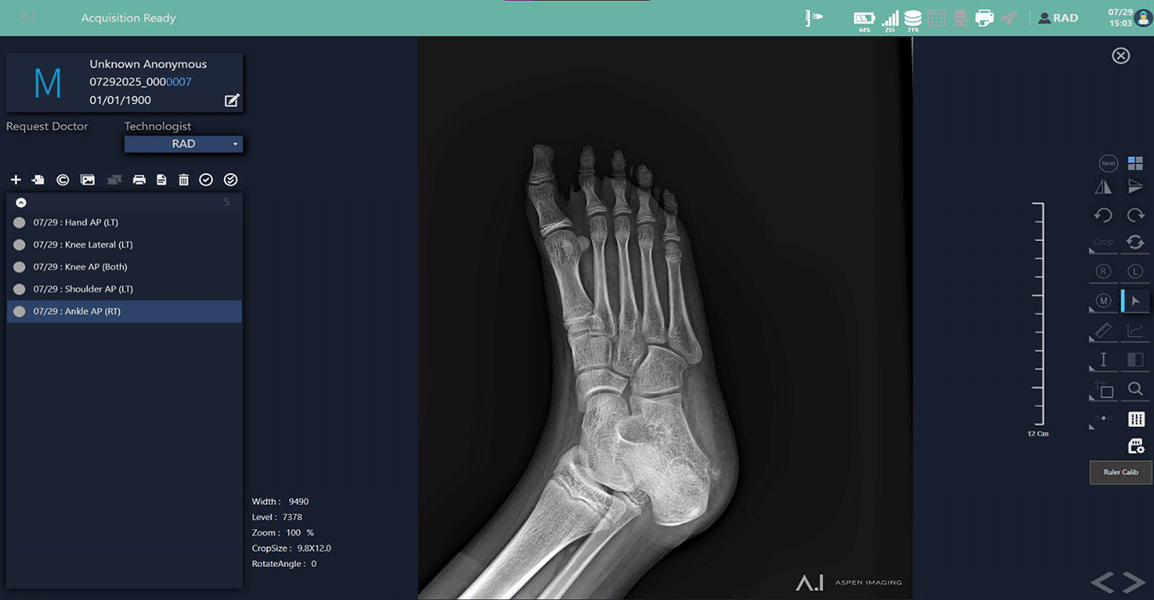

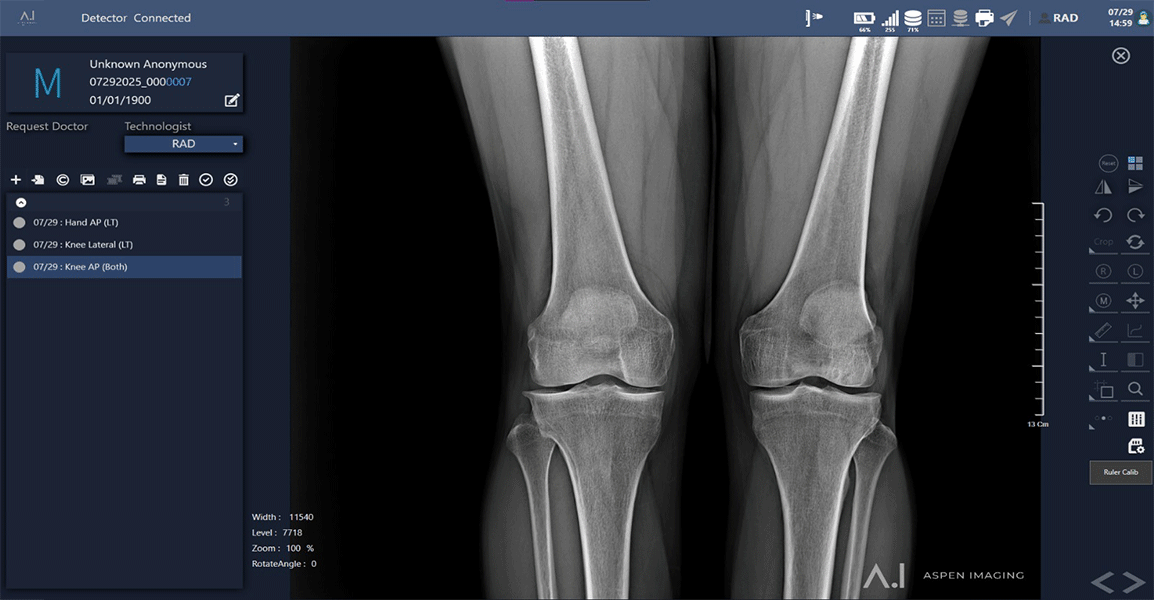

  • Acquire images to your on-board workstation
  • Send images via Wi-Fi to any PACs or storage
  • Receive remote tech support via TeamViewer
Superior Battery Performance
  • Long-lasting standby battery life
  • Empty to full charge battery within 2 hours
Easy Medical Imaging
  • No construction or installation needed
  • No additional electrical power source needed
  • Doesn’t require a dedicated, physical space

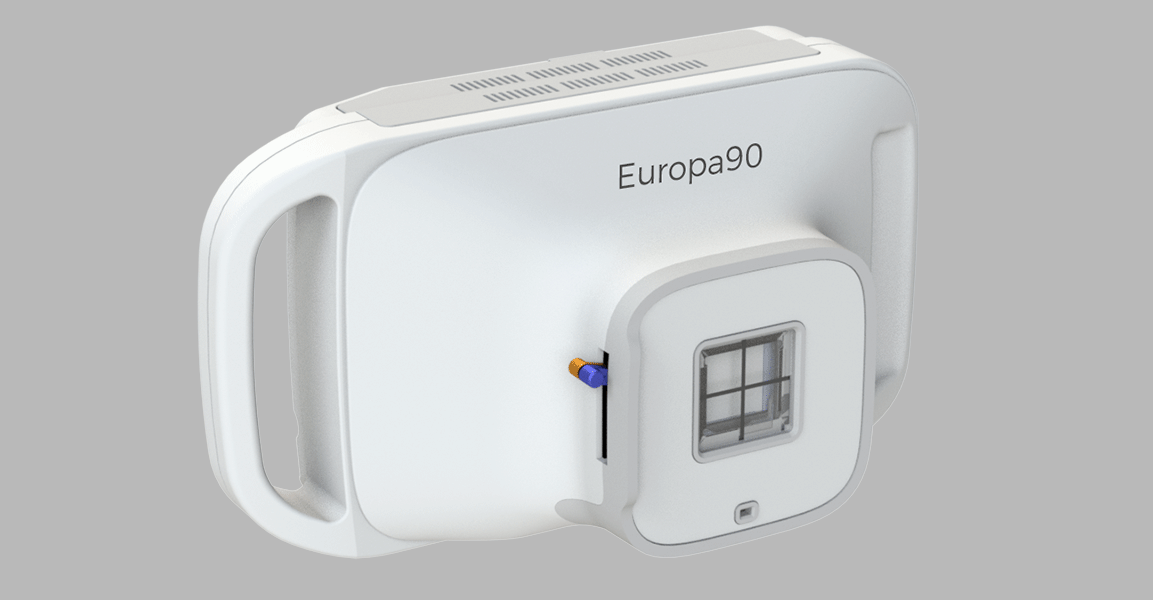

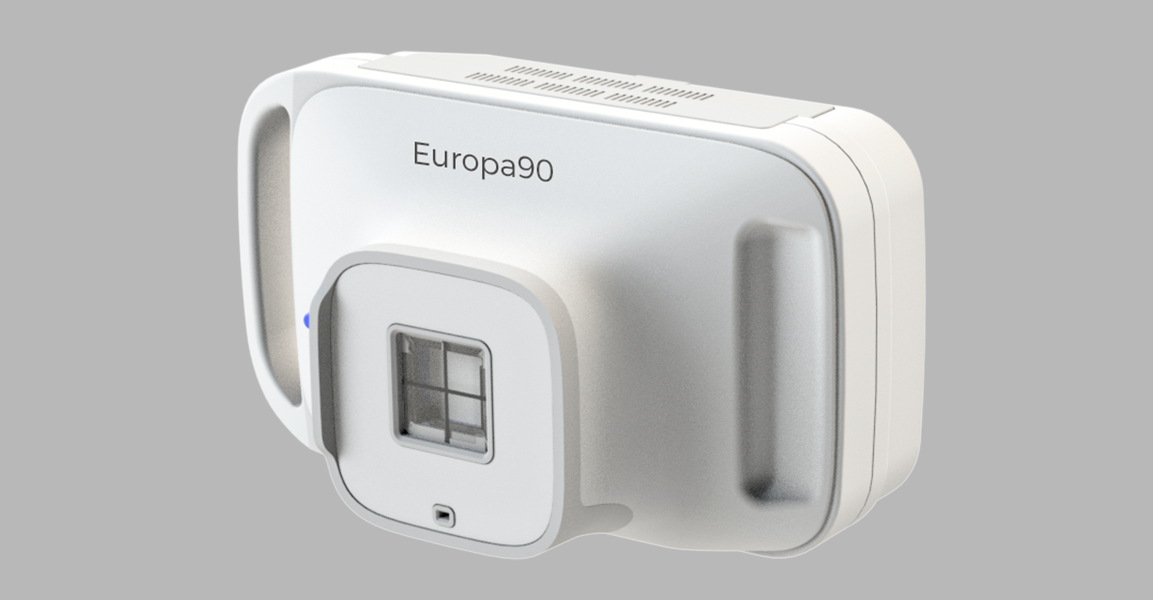

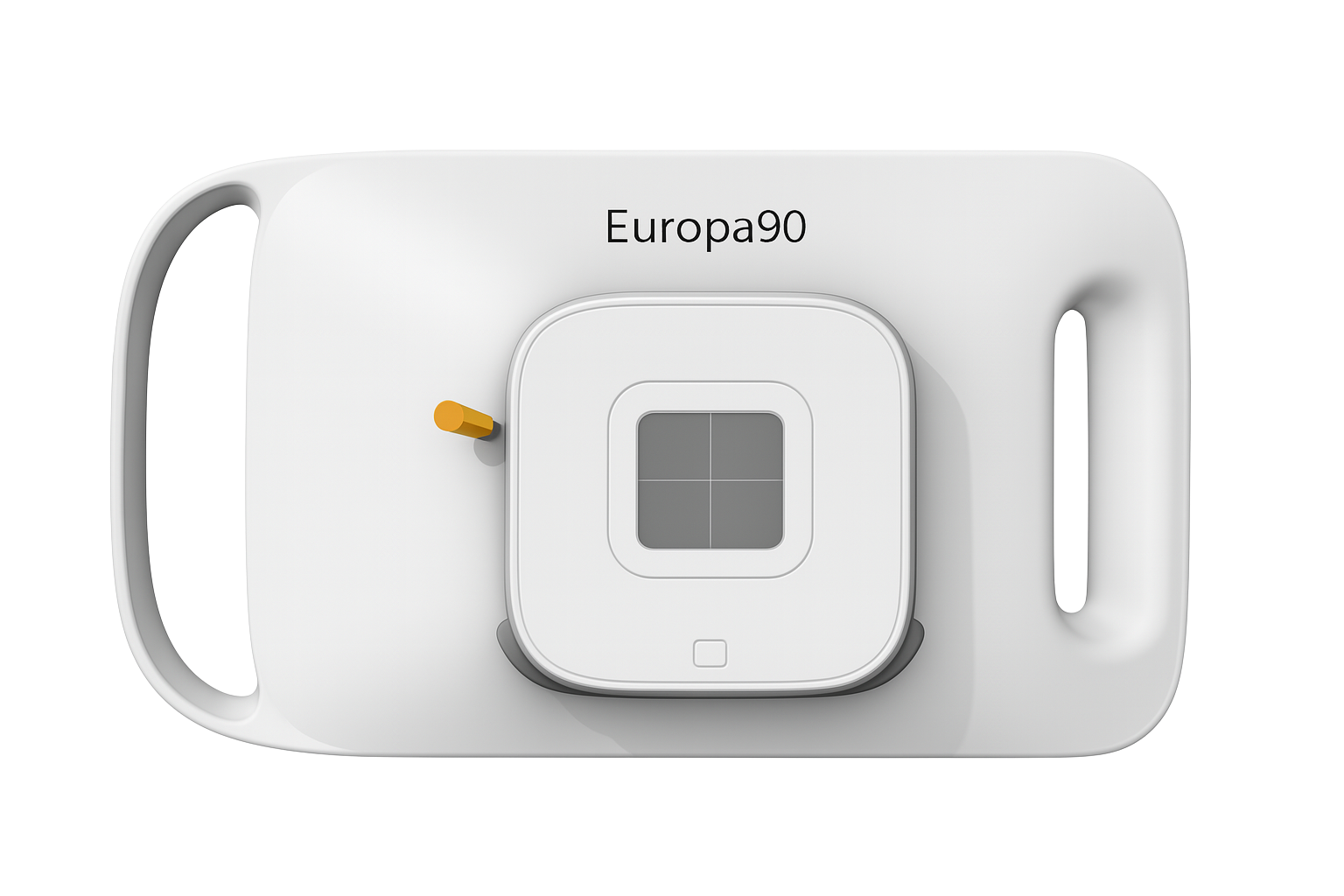

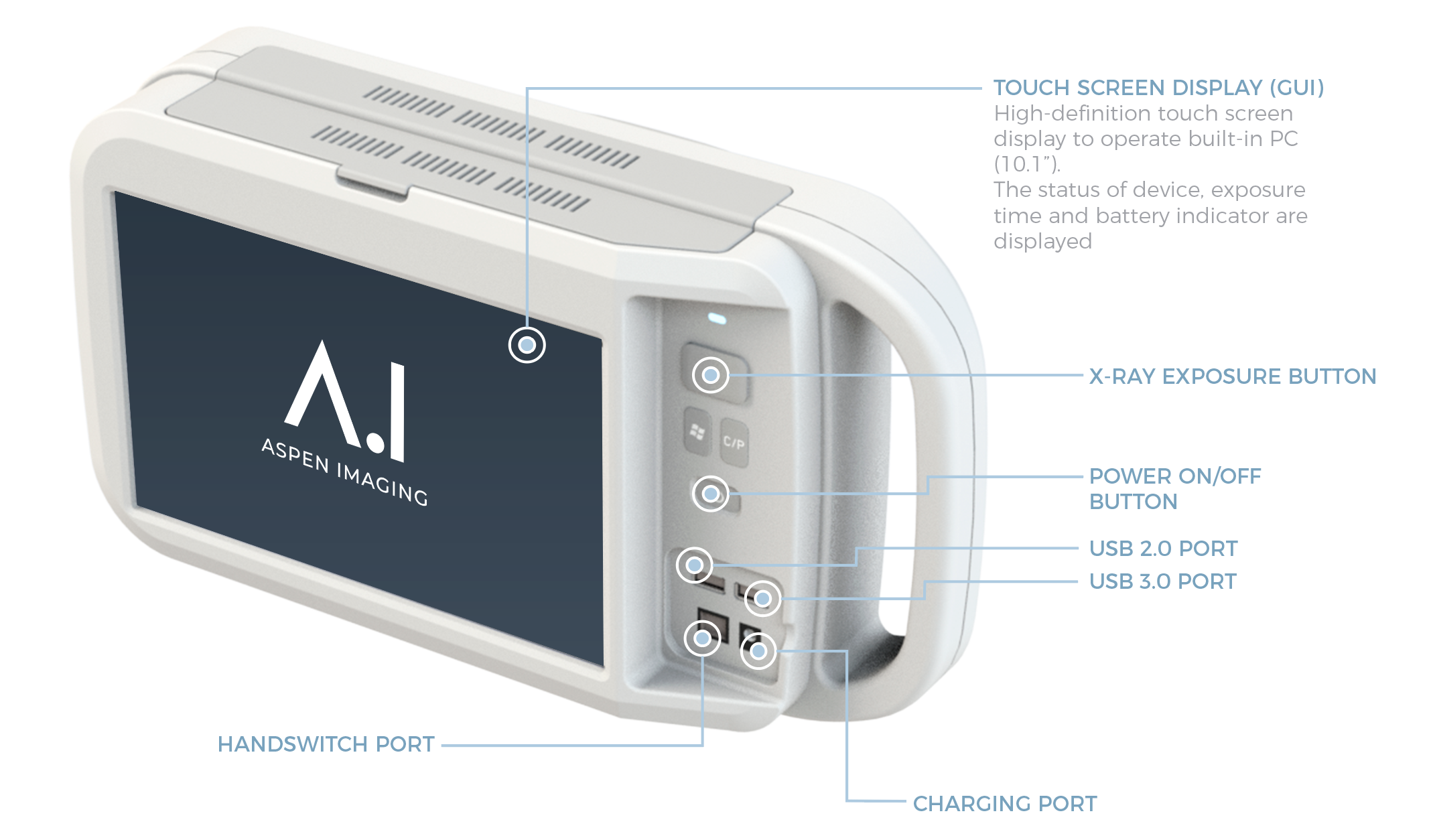

Meet Europa

Key Features

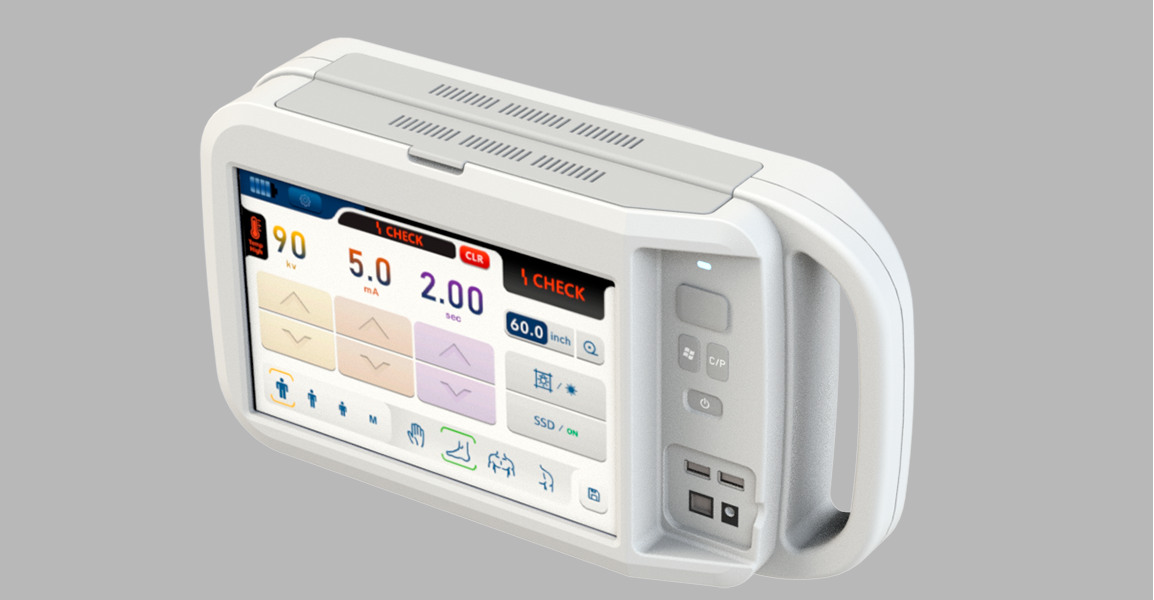

All-In-One PC Workstation

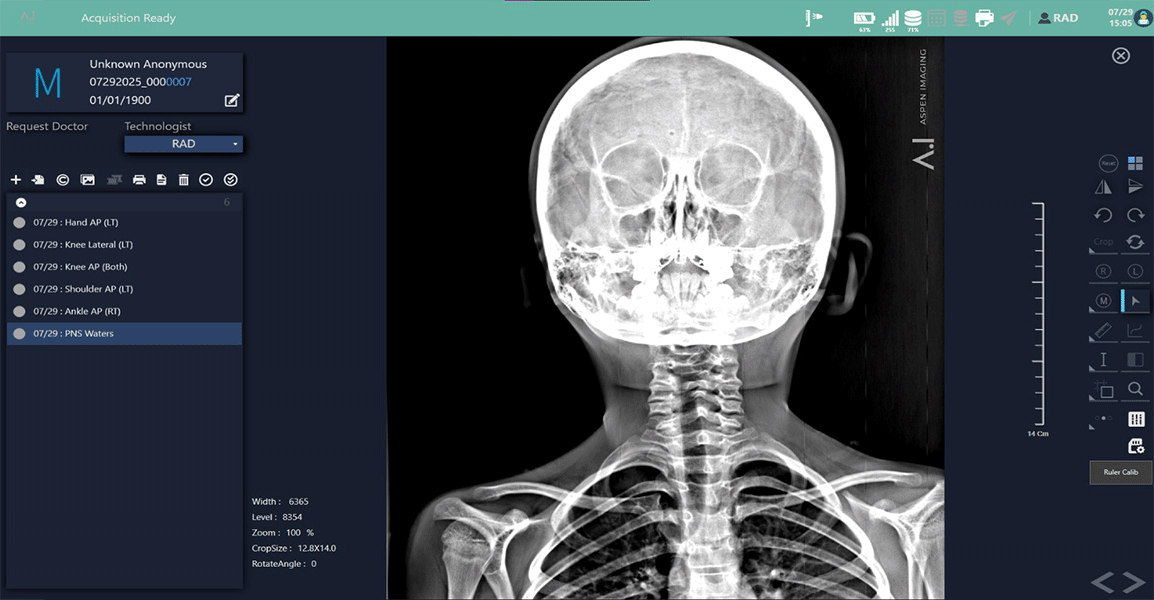

• Integrated INTEL PC with Windows 10 OS, preloaded with DR Software
Extreme Light Weight
• 5.5 lbs for ultimate portability and convenience
Remote Support
• Pre-Loaded Remote Assistance Software (TeamViewer)
Ultra Low Dose Imaging

Dose Comparison (mSv)

Occupational dose limit requiring dosimetry (5mSv)
5mSv
Average natural background – US (3.65mSv)
3.65mSv
Average occupational radiation exposure to flight crew (2.19mSv)
2.19mSv
General public dose limit (1.0mSv)
1.0mSv
Conventional dental x-ray range (0.16 - 0.37mSv)
0.37mSv
Europa's average range (0.04mSv, measured with digital sensor)
0.04mSv
*Application: Dental Imaging; Dental sensor provided separately*

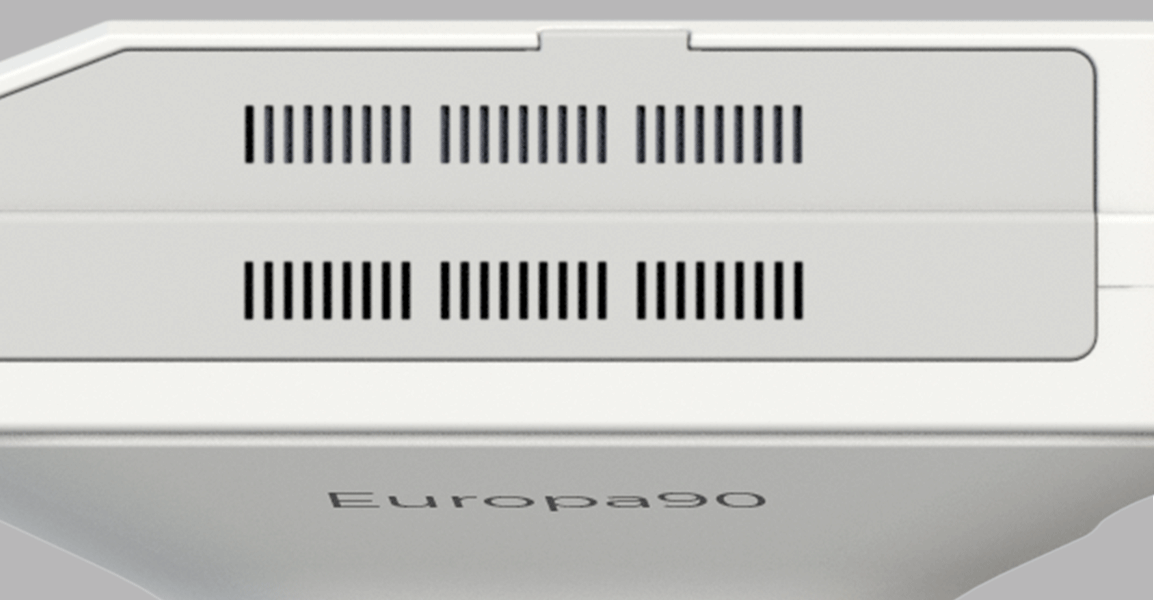

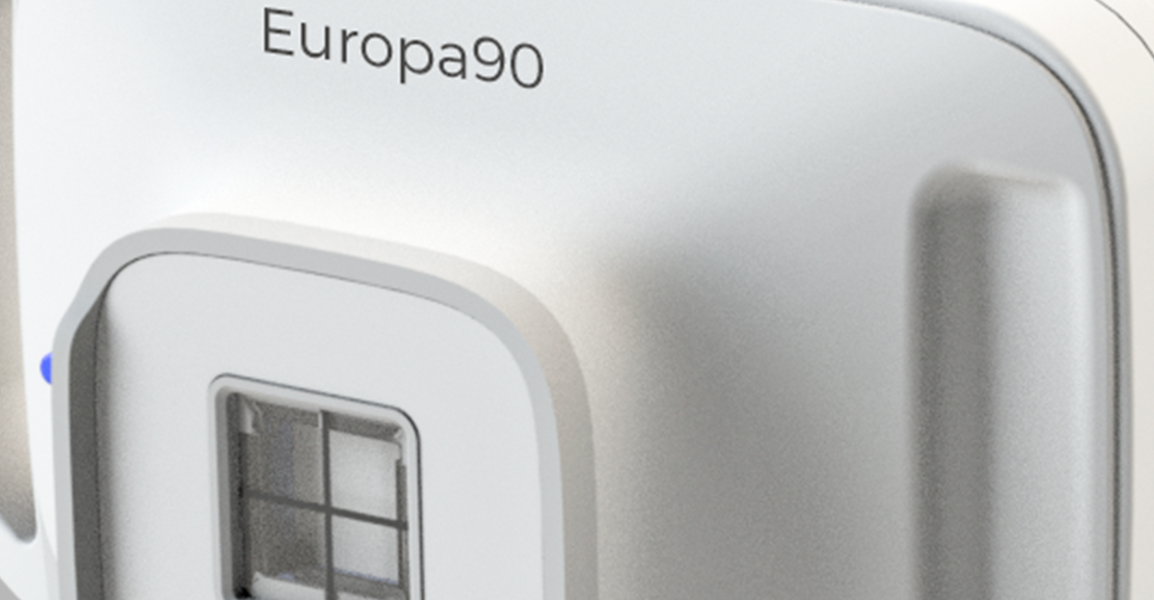

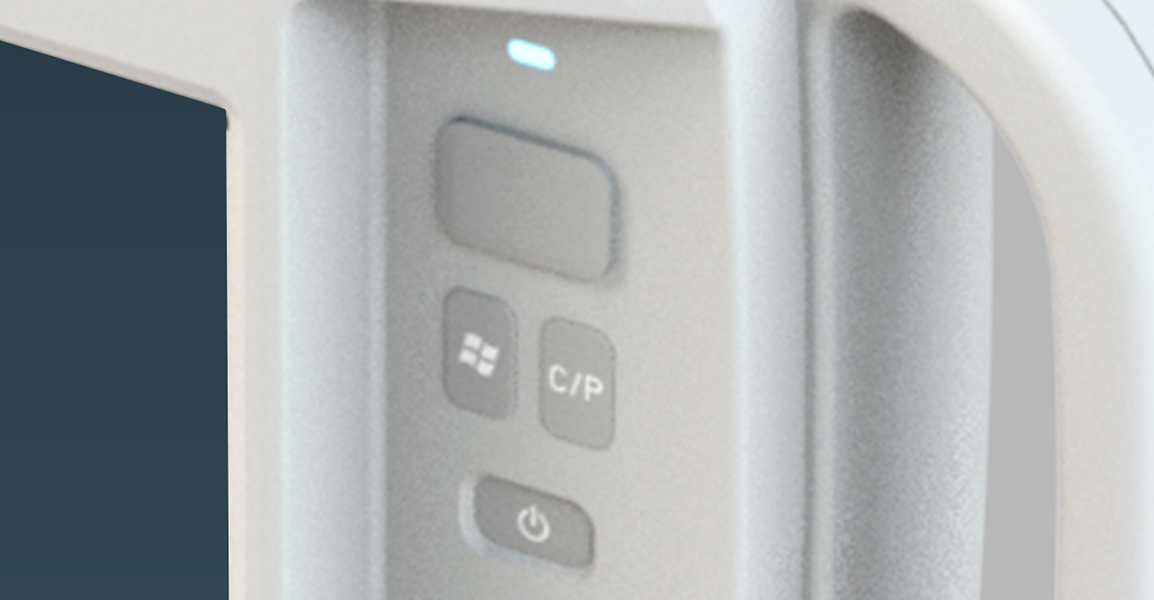

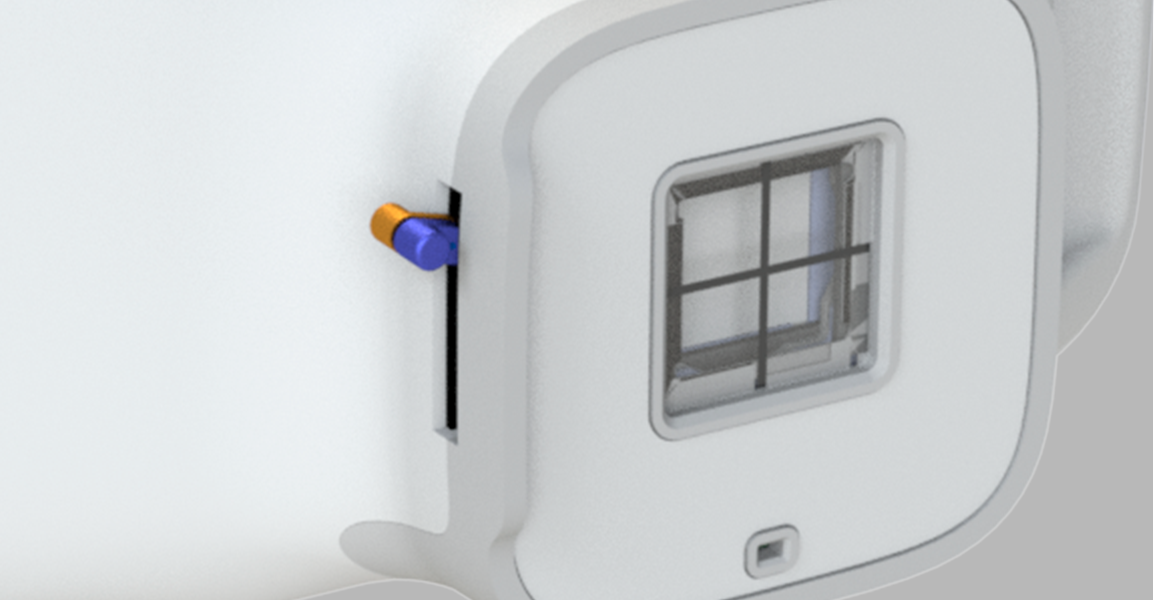

Zooming In

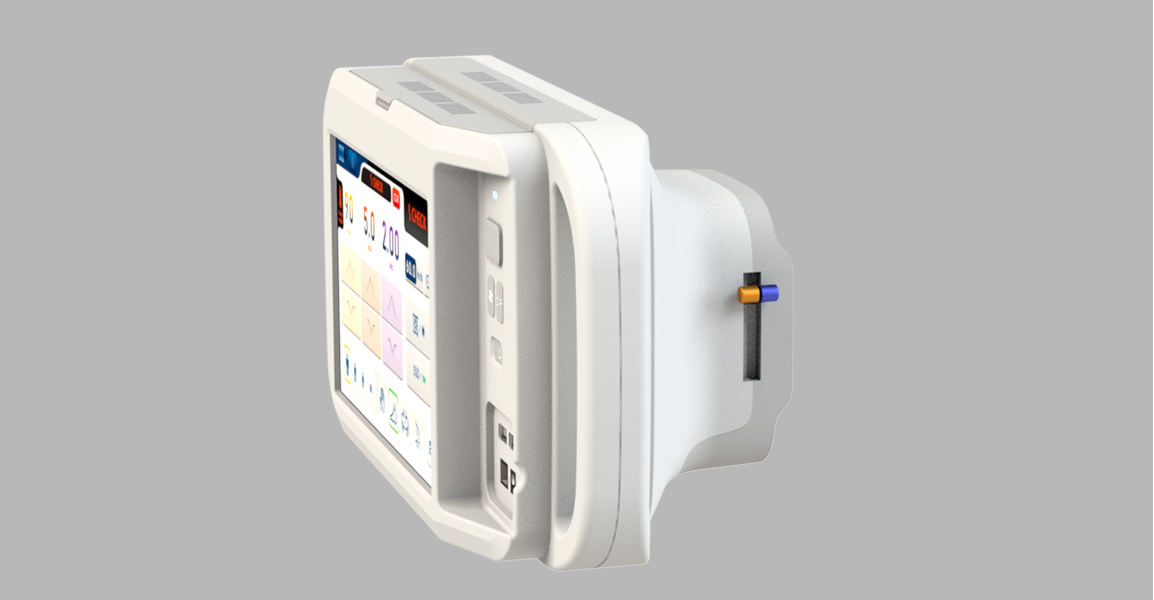

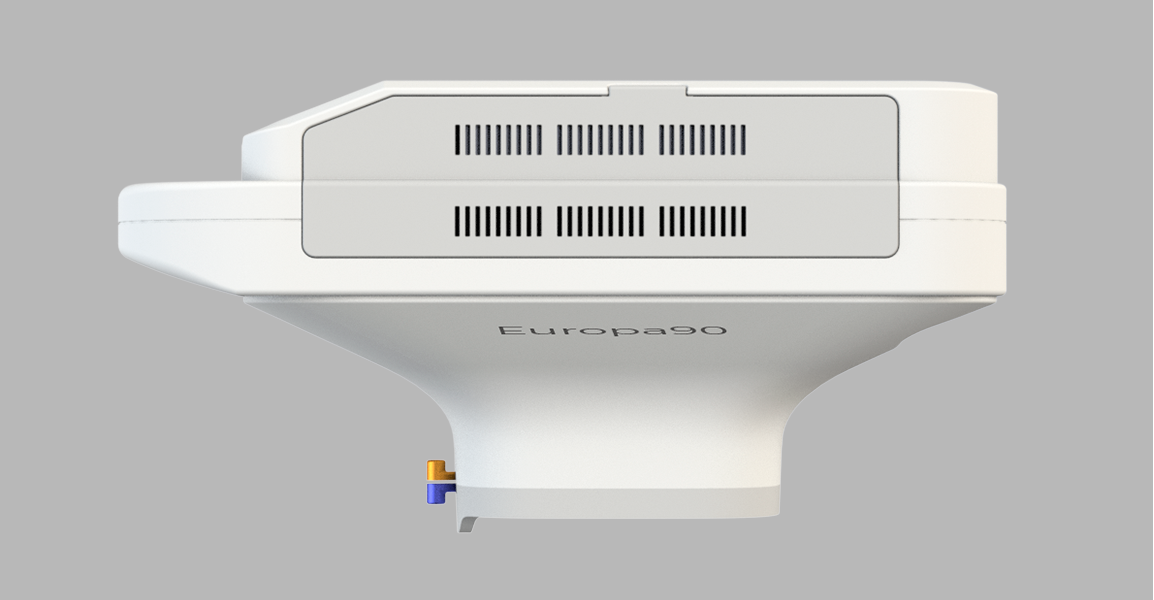

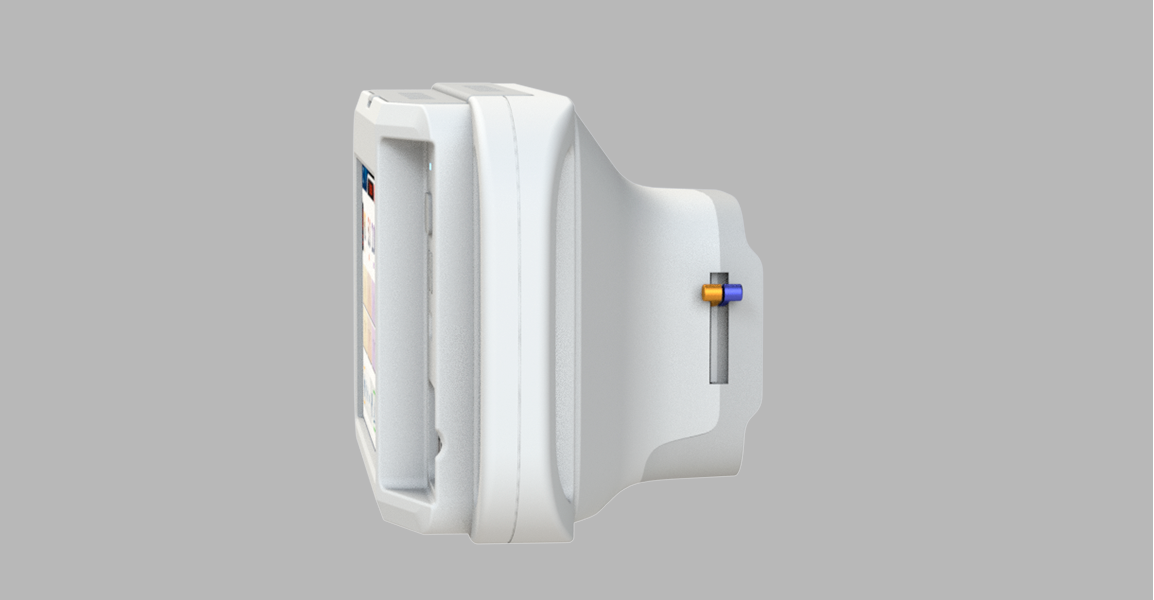

View 360°

Discover More

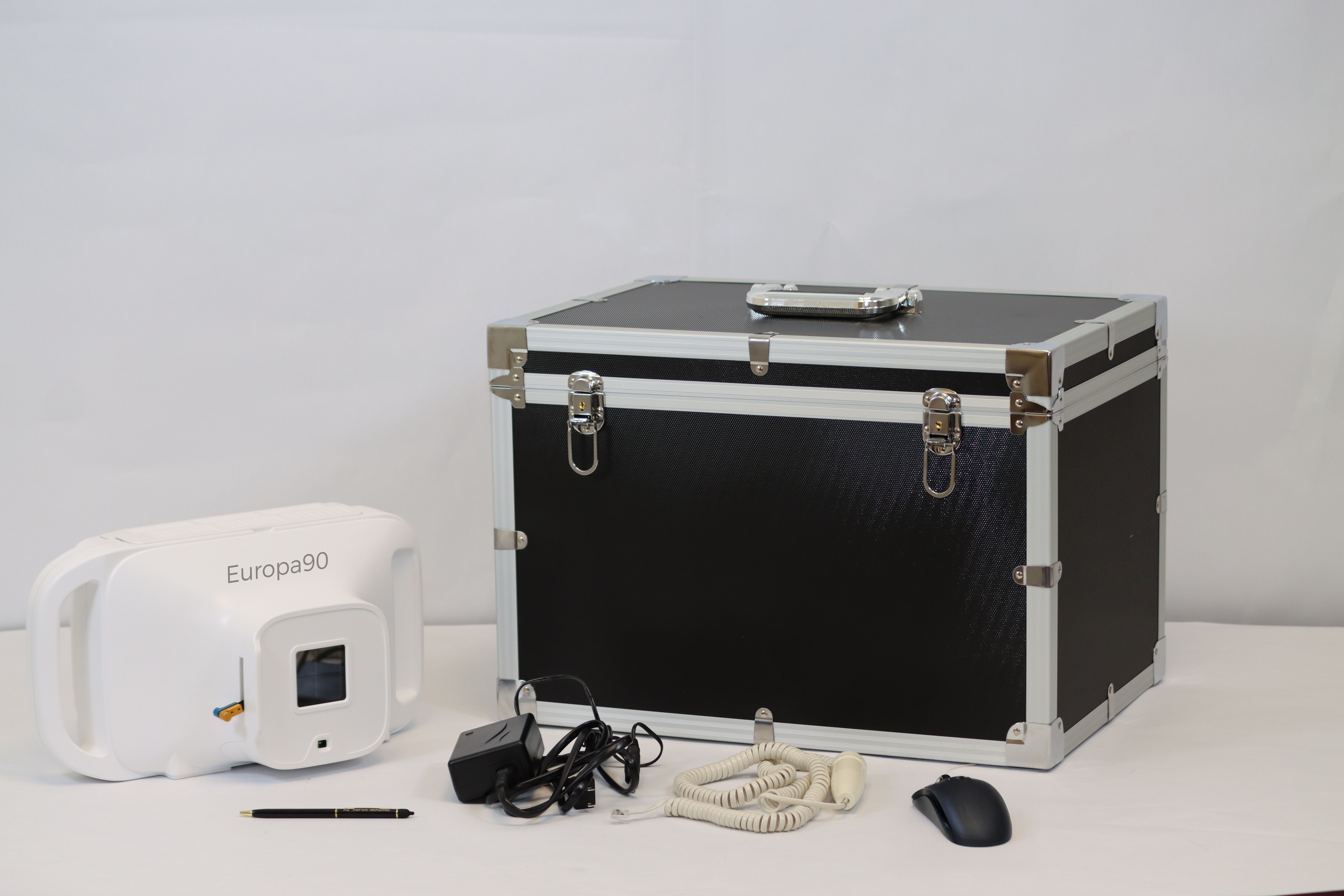

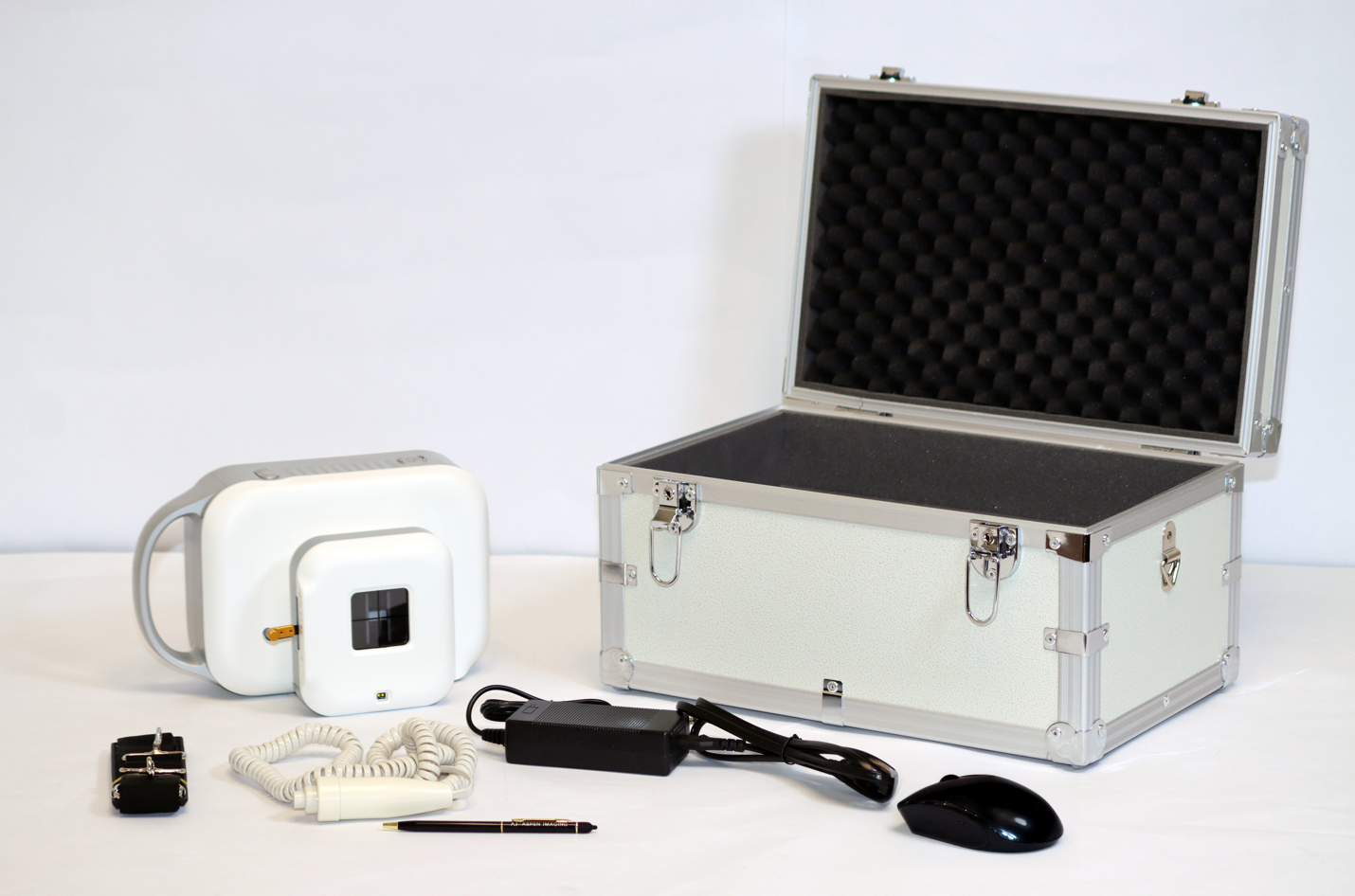

What's Inside the Box

  • Europa with Windows 10 & Accessories
    • Laptop or tablet (surface) is required; embedded pc on Europa is auxiliary

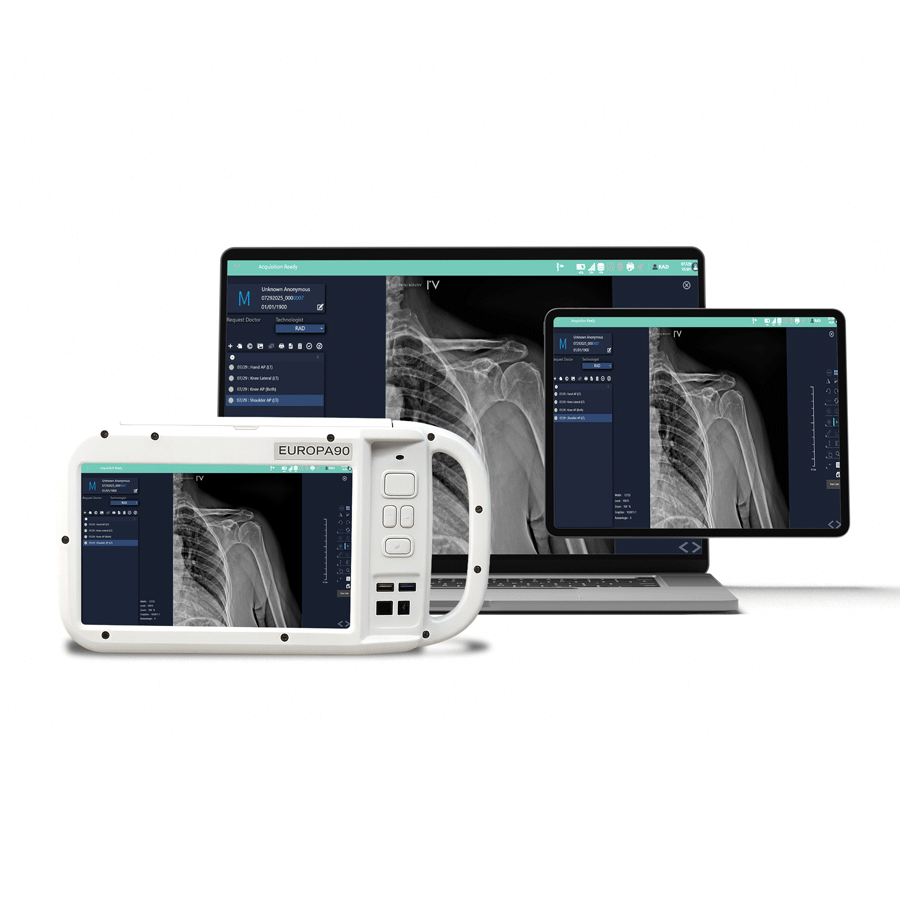

    • Send images directly from Aspen Europa to PACS, Email, Printer, etc. using built in WI-FI and Bluetooth capability
    • Wireless mouse included for ease of using the on-board PC

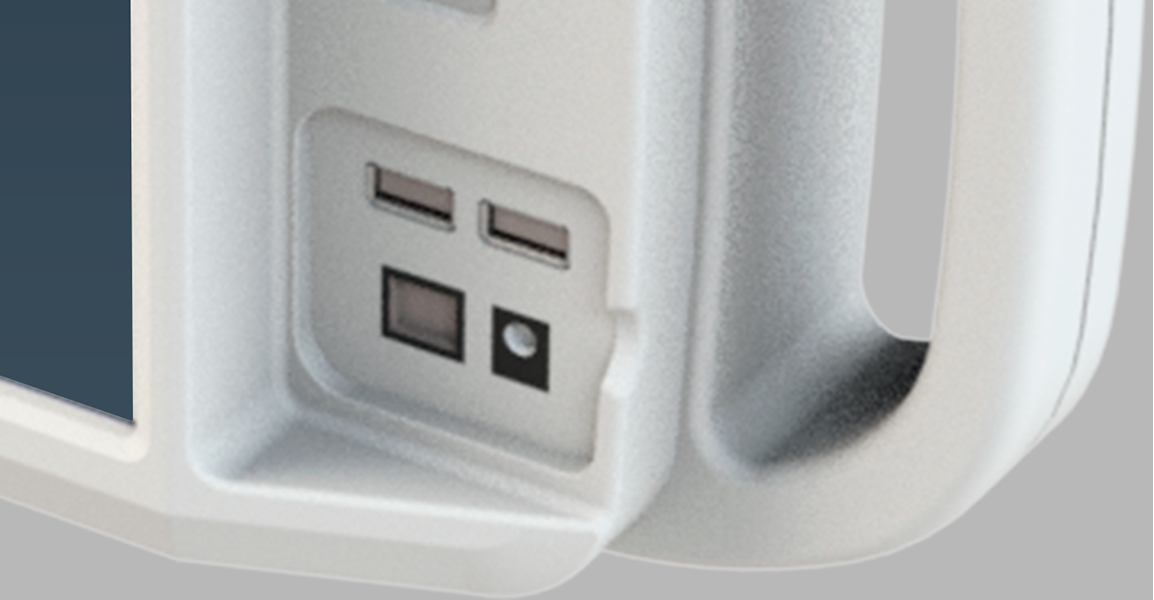

    • Touch screen operation with 2 USB ports
    • TeamViewer pre-loaded for remote diagnostics
    • All charging accessories for the system

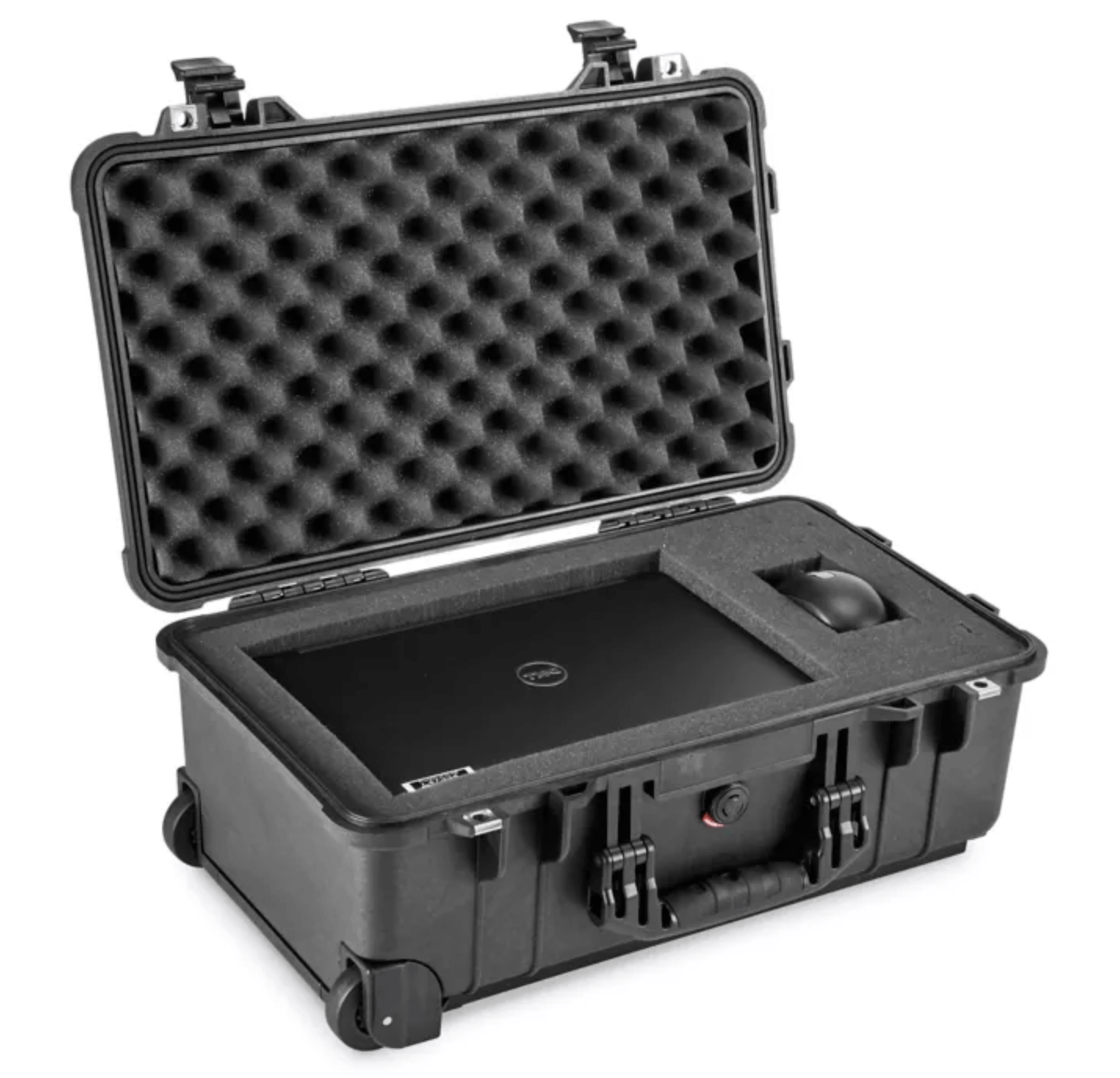

  • Carrying Case
    • Hard-shell, lightweight case with handle for ease of transport
    • Foam inserts for all possible product configurations
    • Lock with customizable numeric passcode
  • X-ray Tube & X-ray Generator enclosed
    • High frequency, 100 kHz Monoblock x-ray generator integrated into system
    • Model: Toshiba D 081B
    • 0.8mm focal spot
  • Hand Switch
    • 2 Position Hand Switch with coiled cable
    • Connects directly to Europa

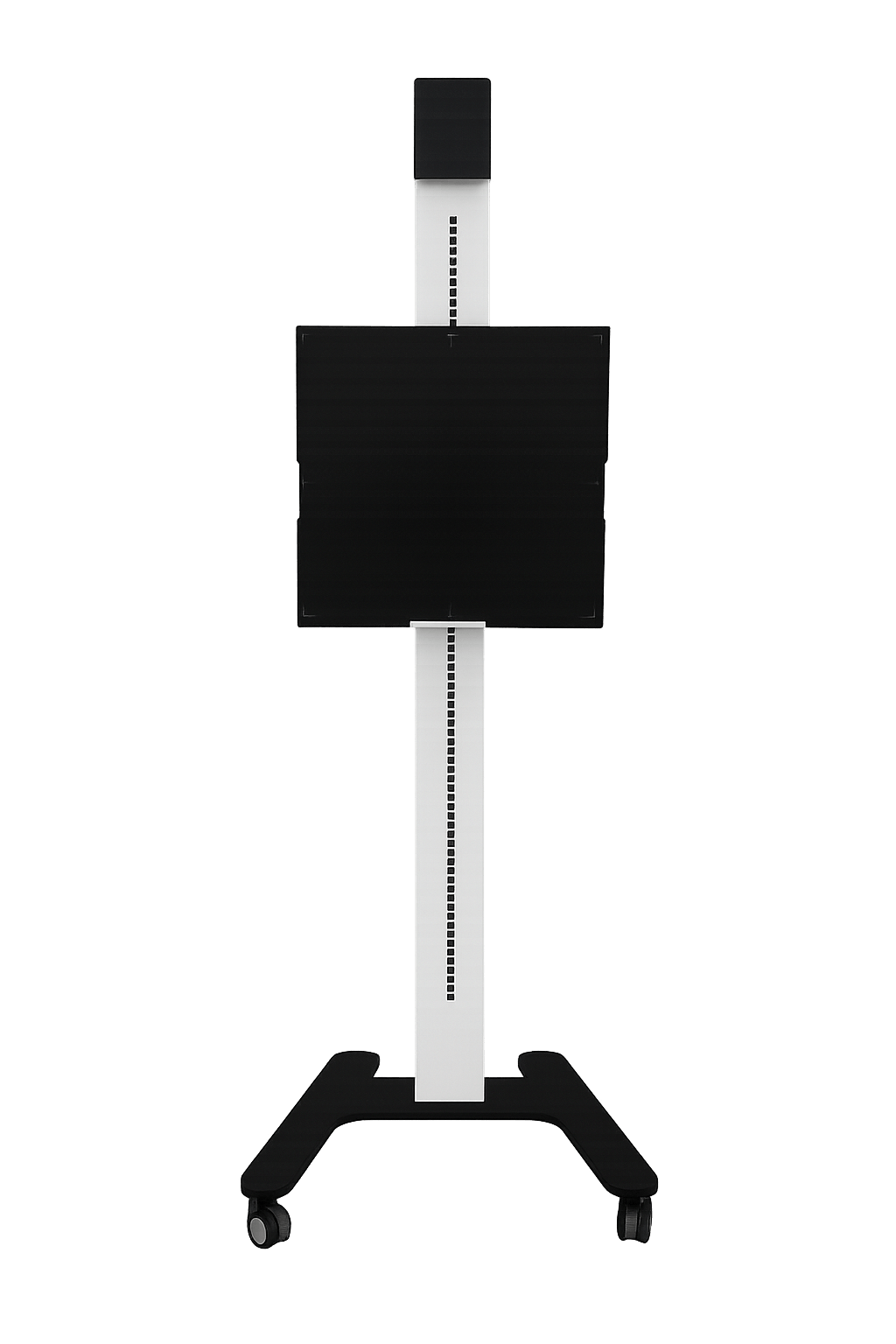

Add-Ons & Specs

Item Specification
Dimensions 9.19" (W) x 4.6" (H) x 4.16" (D)
Weight 5.5 lbs (2.49 kg)
Display 7 Inch LCD Panel (Resolution: 1024 x 600)
Input Power 25.2 VDC 1A
Device Power Source 22.2 VDC (Battery)
Frequency 100kHz
kV, mA 60 kV / 2 mA (Fixed)
X-Ray Exposure Time Range 0.03 ~ 1.30 sec (Selectable by Operator)
X-Ray Tube Model Toshiba D–081B
X-Ray Tube Focal Spot 0.8mm

Achieve better clinical outcomes and happier clients with Europa
